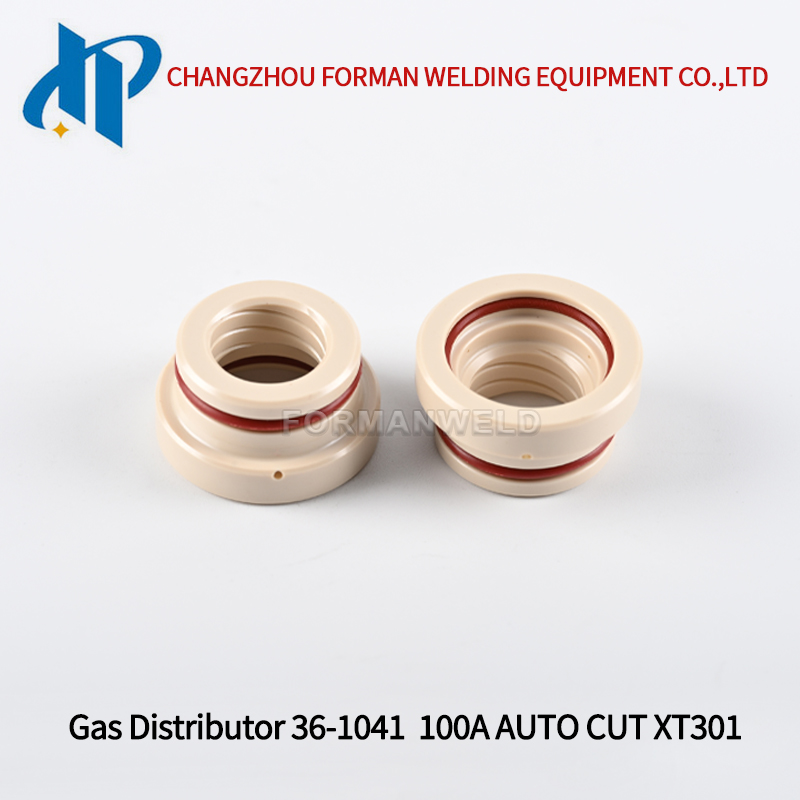

Gas Distributor 36-1041 Fit Auto Cut Xt301 Plasma Torch 100A

  • Plasma

  • Copper

  • 36-1041

  • 100A

  • AC220V

  • CNC

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cutting Distributor Plasma Shield 36-1041 Xt301 Thermal Dynamics
Product Description

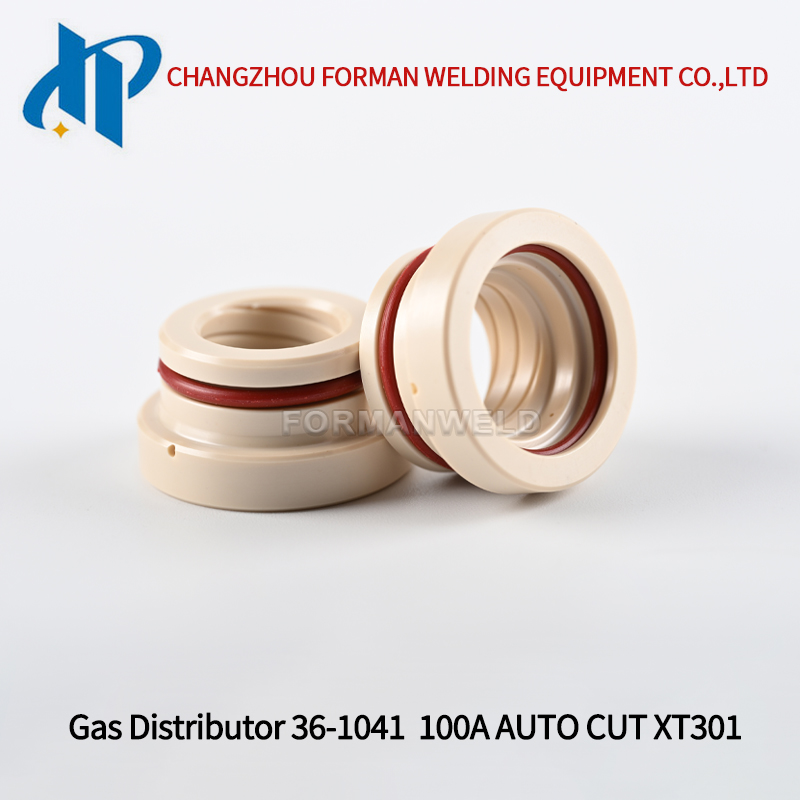

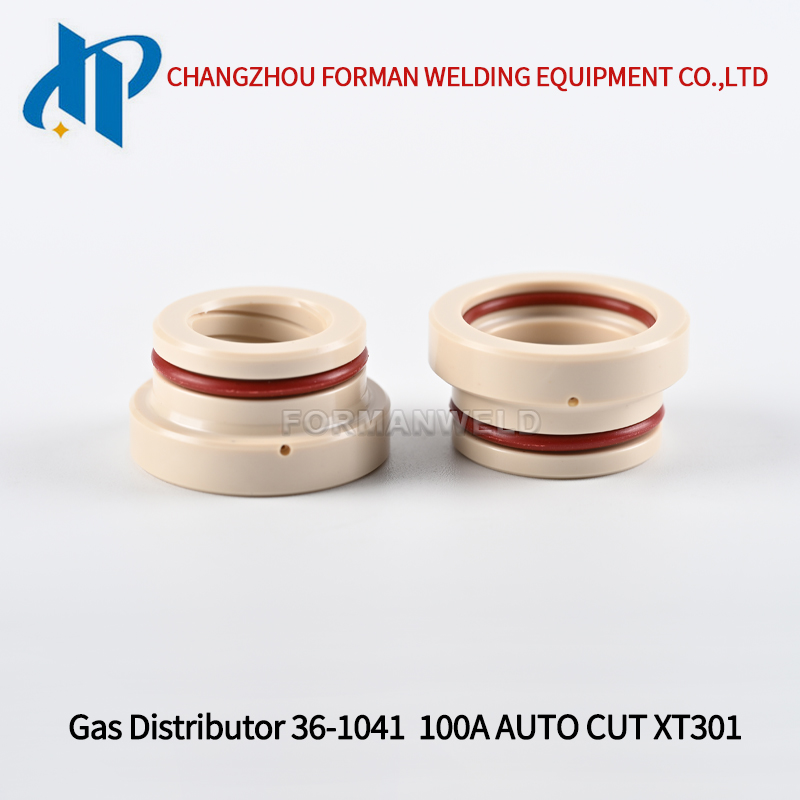

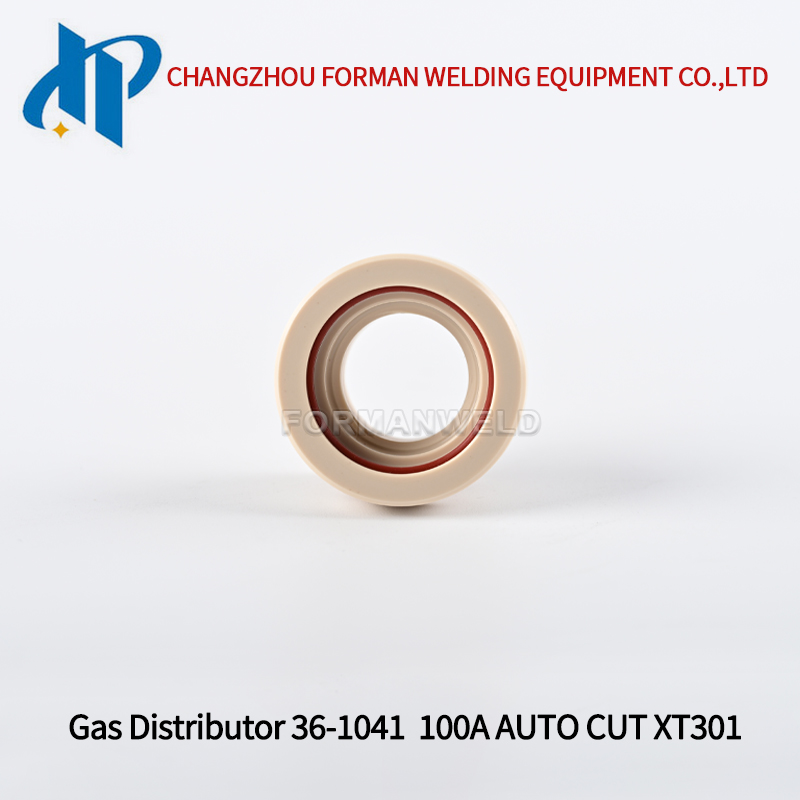

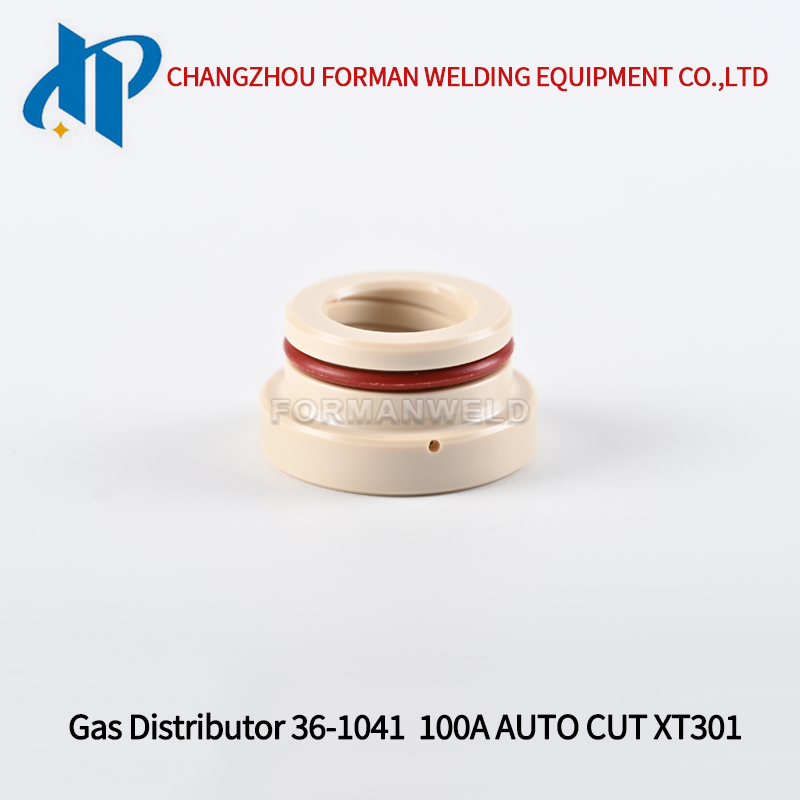

Gas Distributor 36-1041 Fit Auto Cut Xt301 Plasma Torch 100A

We supply plasma cutting parts (Shield, Retaining cap, Nozzle, Swirl ring, Electrode)We can provide the Hypertherm, Thermadyne, Kaliburn, kjellberg and Esab brand.


Quick Details
XT301=2


 AMP Plasma/Shield Gas Shield
Retainer		 Shield Cup Shield Cap Shield Gas
Distributor		 Tip Plasma Gas Distributor Electrode Cartridge
Mild Steel 200A Air Plasma / Air Shield 36-1019 36-1018 36-1028 36-1280 36-1055 36-1041 36-1085 36-1020
O2 Plasma / Air Shield 36-1019 36-1018 36-1029 36-1281 36-1056 36-1041 36-1085 36-1020
300A Air Plasma / Air Shield 36-1021
36-1037 36-1283 36-1050 36-1044 36-1088 36-1020
Stainless Steel
Aluminum		 200A Air Plasma / Air Shield 36-1019 36-1018 36-1030 36-1282 36-1055 36-1041 36-1085 36-1020
H35 Plasma / N2 Shield
36-1016 36-1031
(< 1" (25mm)
36-1032
(> 1" (25mm)		 36-1273 36-1058 36-1043 36-1087 36-1020
N2 Plasma / H2O Shield
36-1016 36-1039 36-1273 36-1064 36-1046 36-1089 36-1020

300A Air Plasma / Air Shield 36-1021
36-1037 36-1283 36-1050 36-1044 36-1088 36-1022


Real Shot

xt301 xq

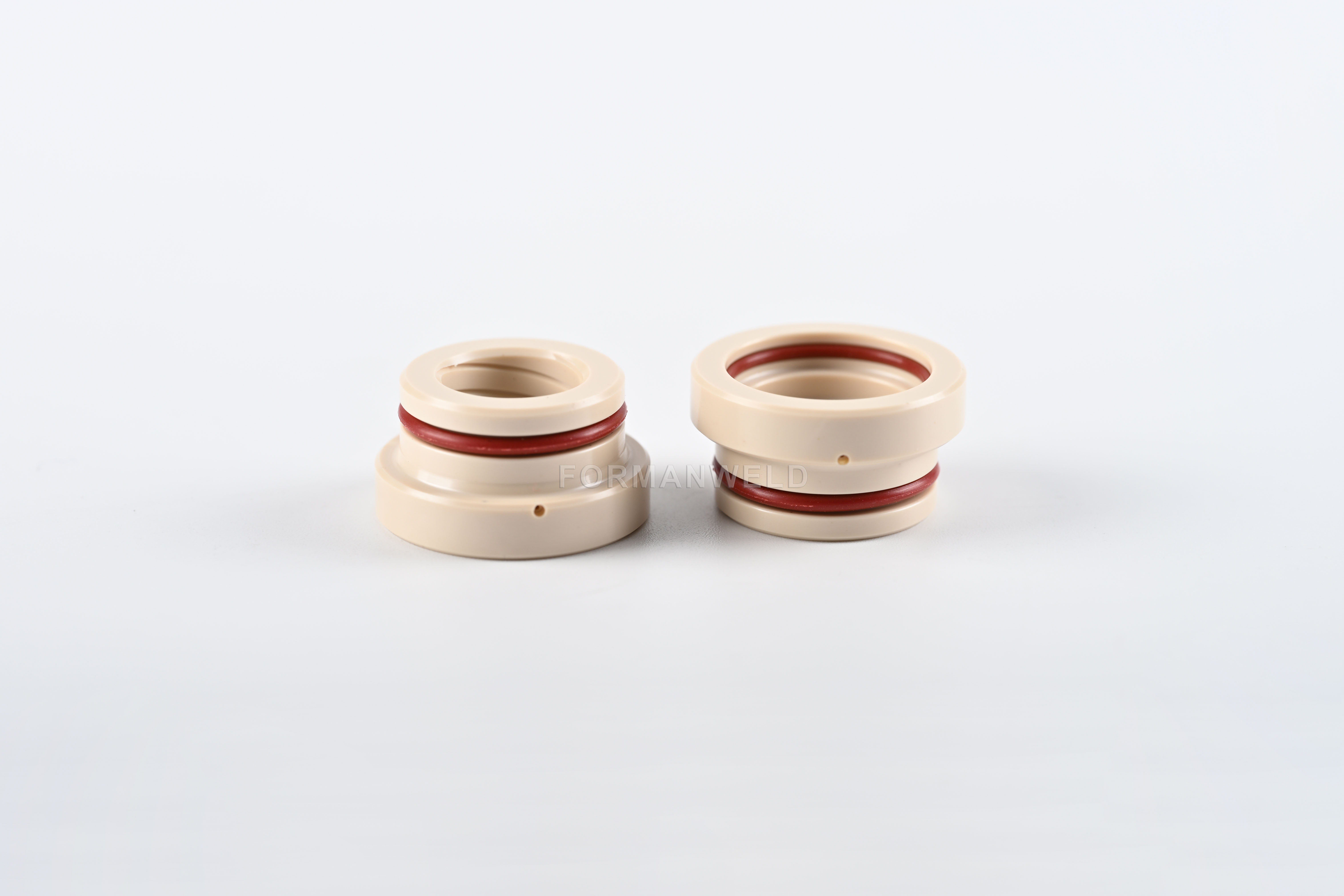

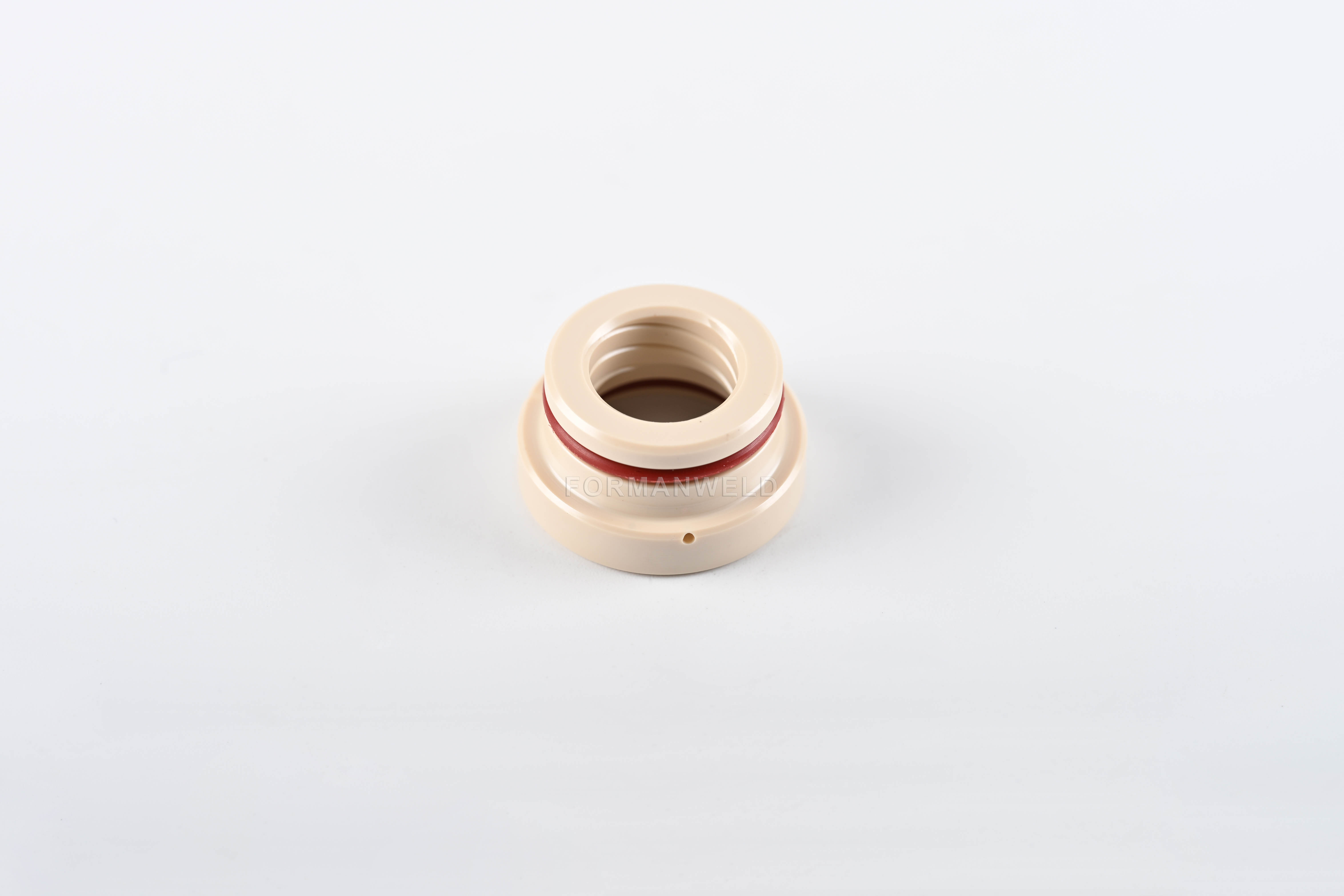

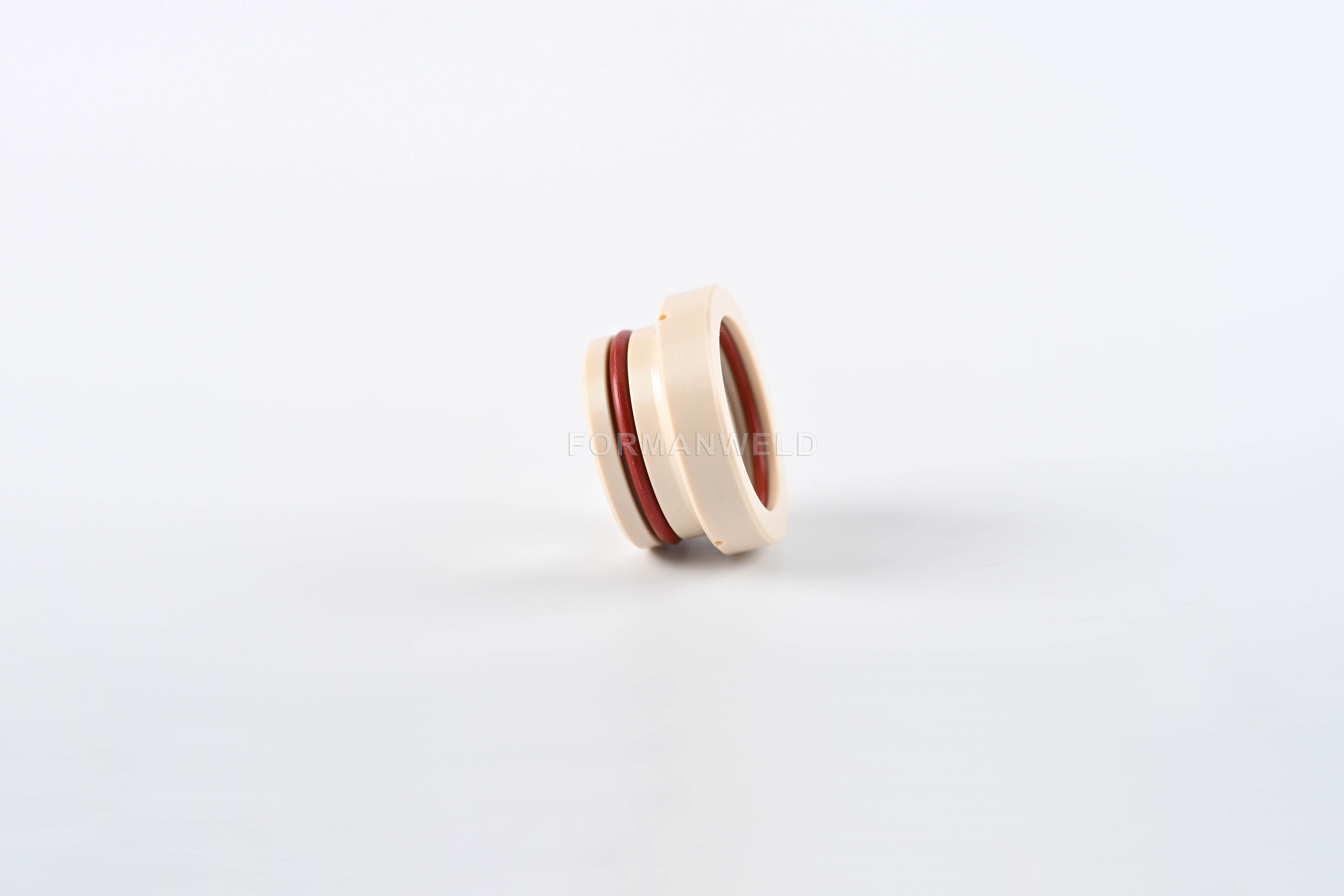

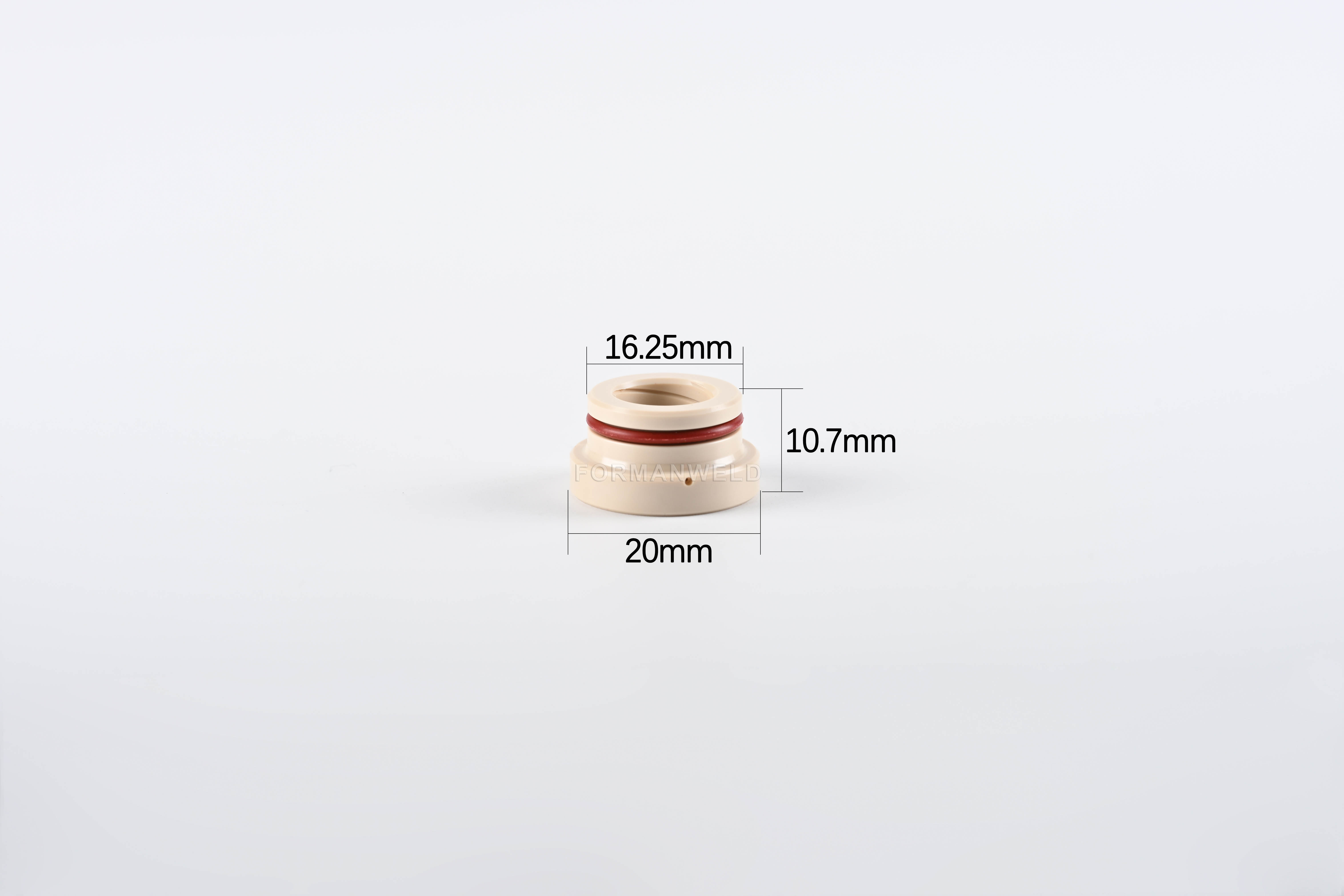

36-1041涡流环尺寸 xq36-1041涡流环=4 xq36-1041涡流环=8 xq36-1041涡流环=3 xq

Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HFM reference to the original manufacturer is for convenience only
