Nozzle 420243 for XPR Plasma Cutting Torch Consumables 80A fit Electrode 420240 Shield 420246 Swirl Ring 420242

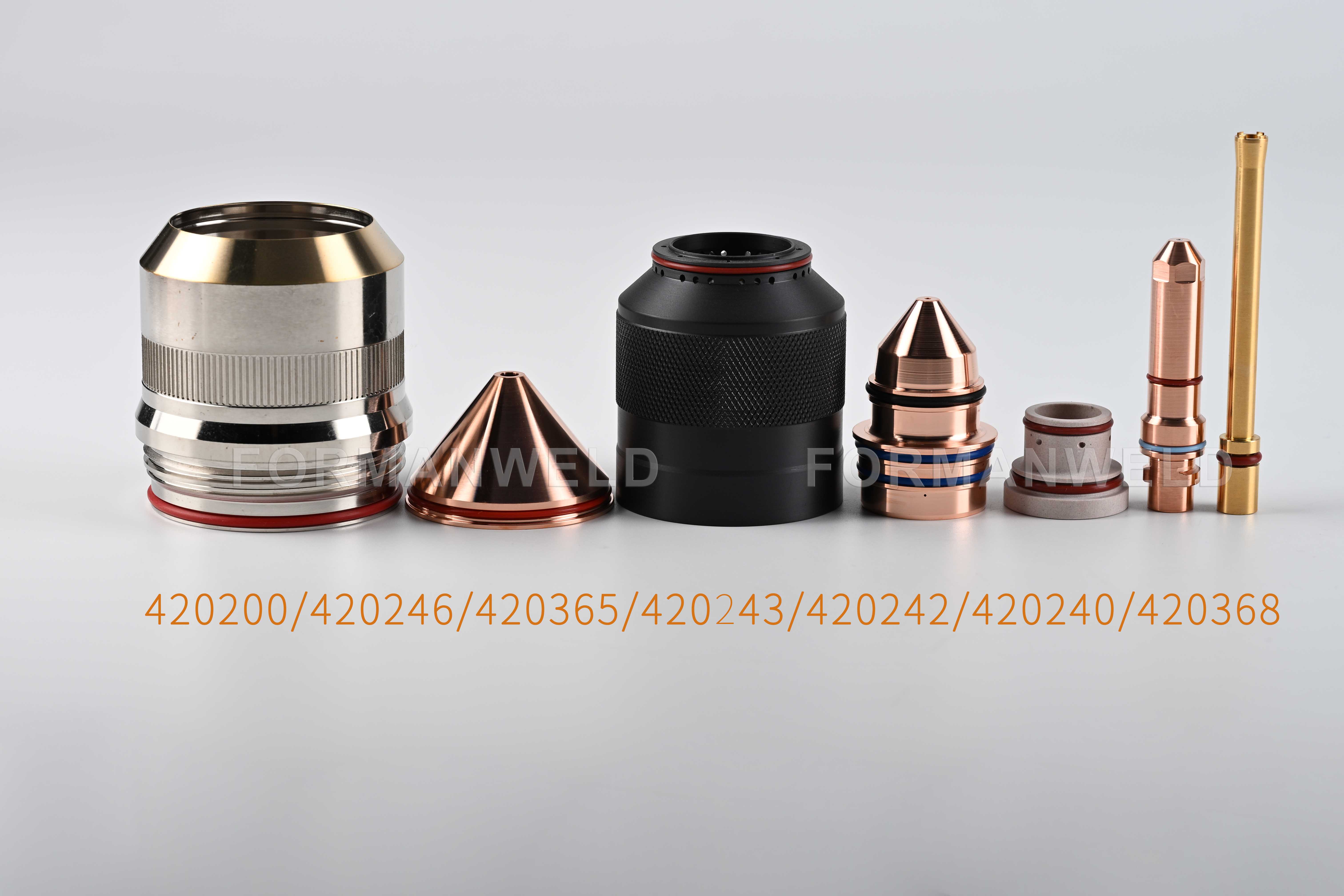

We supply plasma cutting parts (Shield, Retaining cap, Nozzle, Swirl ring, Electrode)
We can provide the Hypertherm, Thermadyne, Kaliburn, kjellberg and Esab brand.

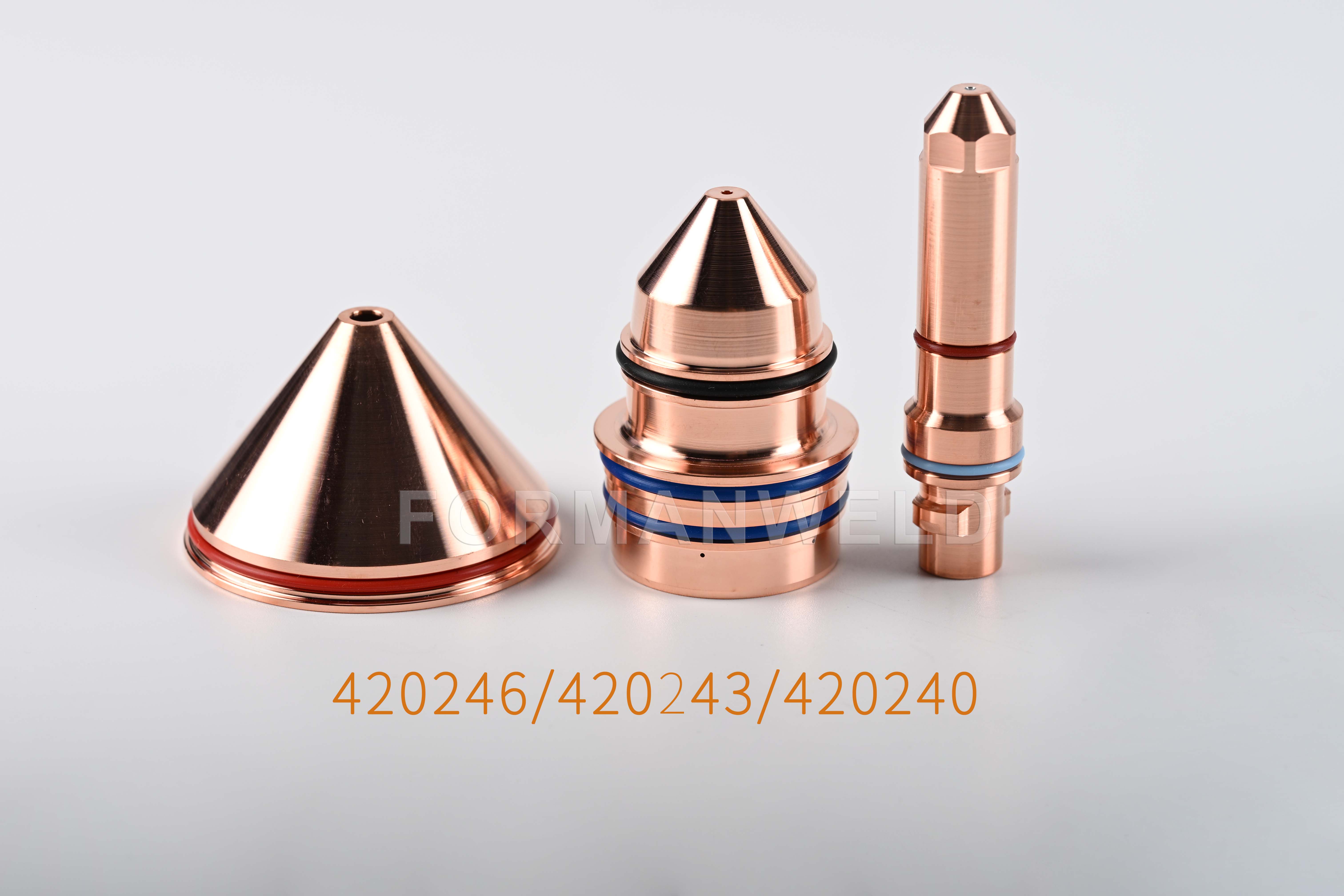

This premium consumables kit is specifically designed for Hypertherm XPR plasma cutting systems operating at 80A. The kit includes three essential components: electrode FM.420240, nozzle FM.420243, and shield FM.420246.
Technical Specifications
System Compatibility
Compatible Systems: Hypertherm XPR170 and XPR300 plasma cutting systems
Amperage Rating: 80A
Material Compatibility: Mild steel (primary), stainless steel, aluminum
Maximum Cutting Thickness: Up to 30 mm (1.2 inches) on mild steel
Duty Cycle: 100% at 80A with proper cooling
Component Functions
Electrode FM.420240
Material: High-quality copper alloy with hafnium insert
Function: Generates the plasma arc and conducts electrical current
Weight: Approximately 1.6 ounces
Dimensions: 1 x 1 x 6 inches

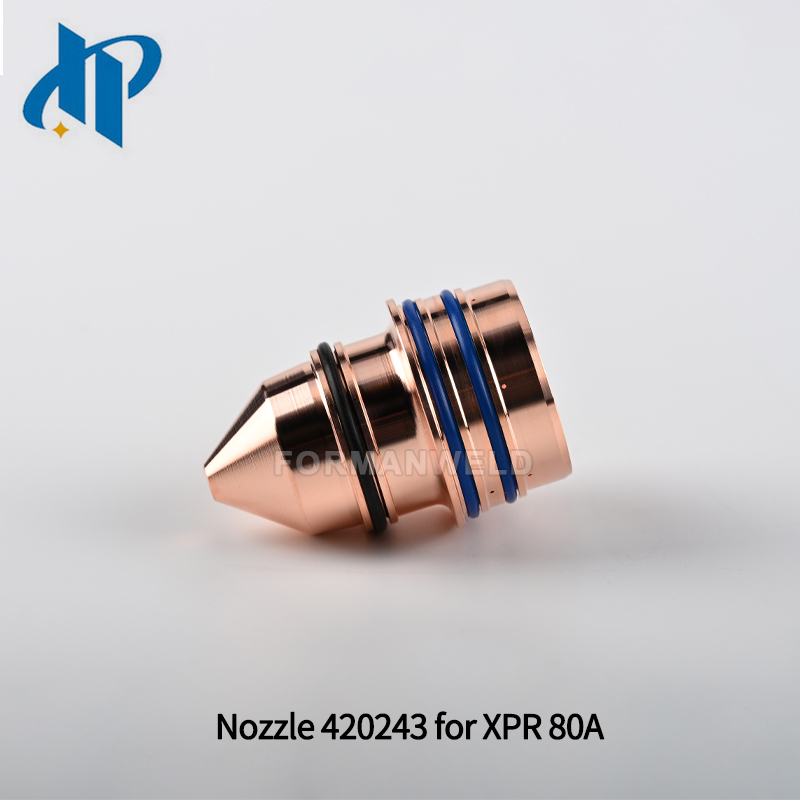

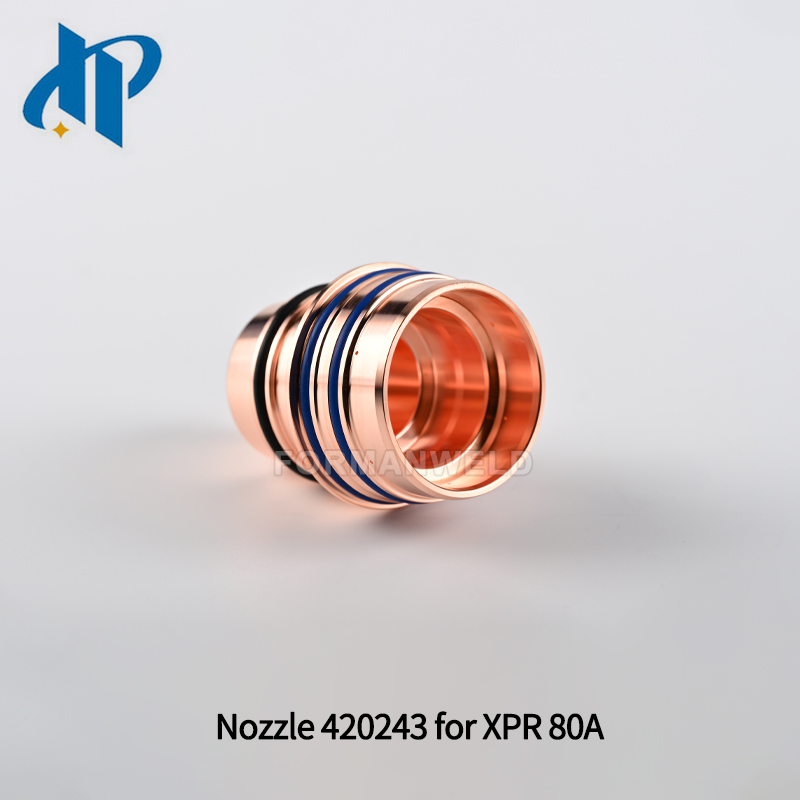

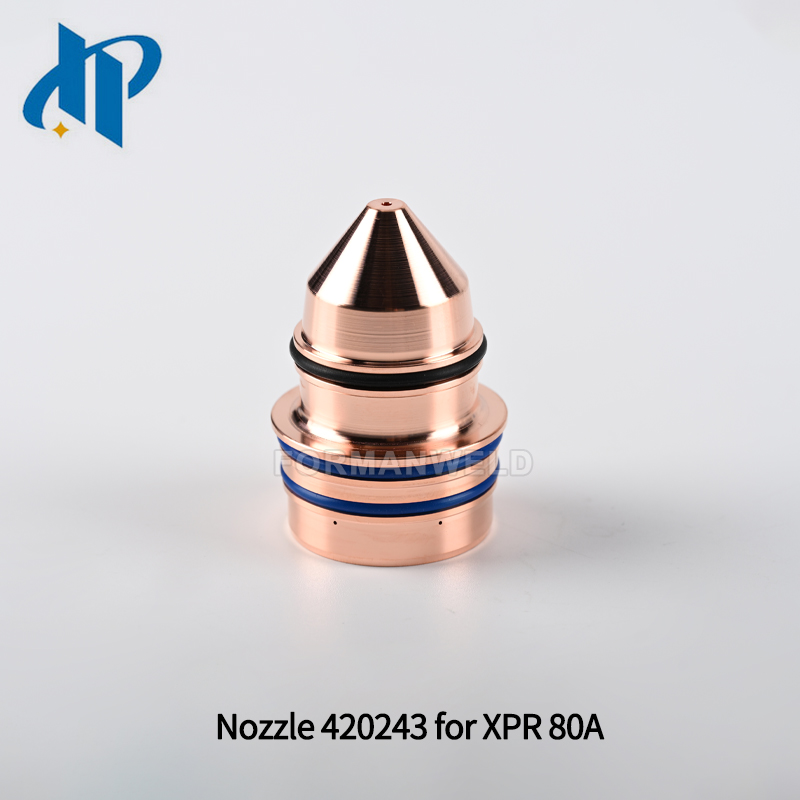

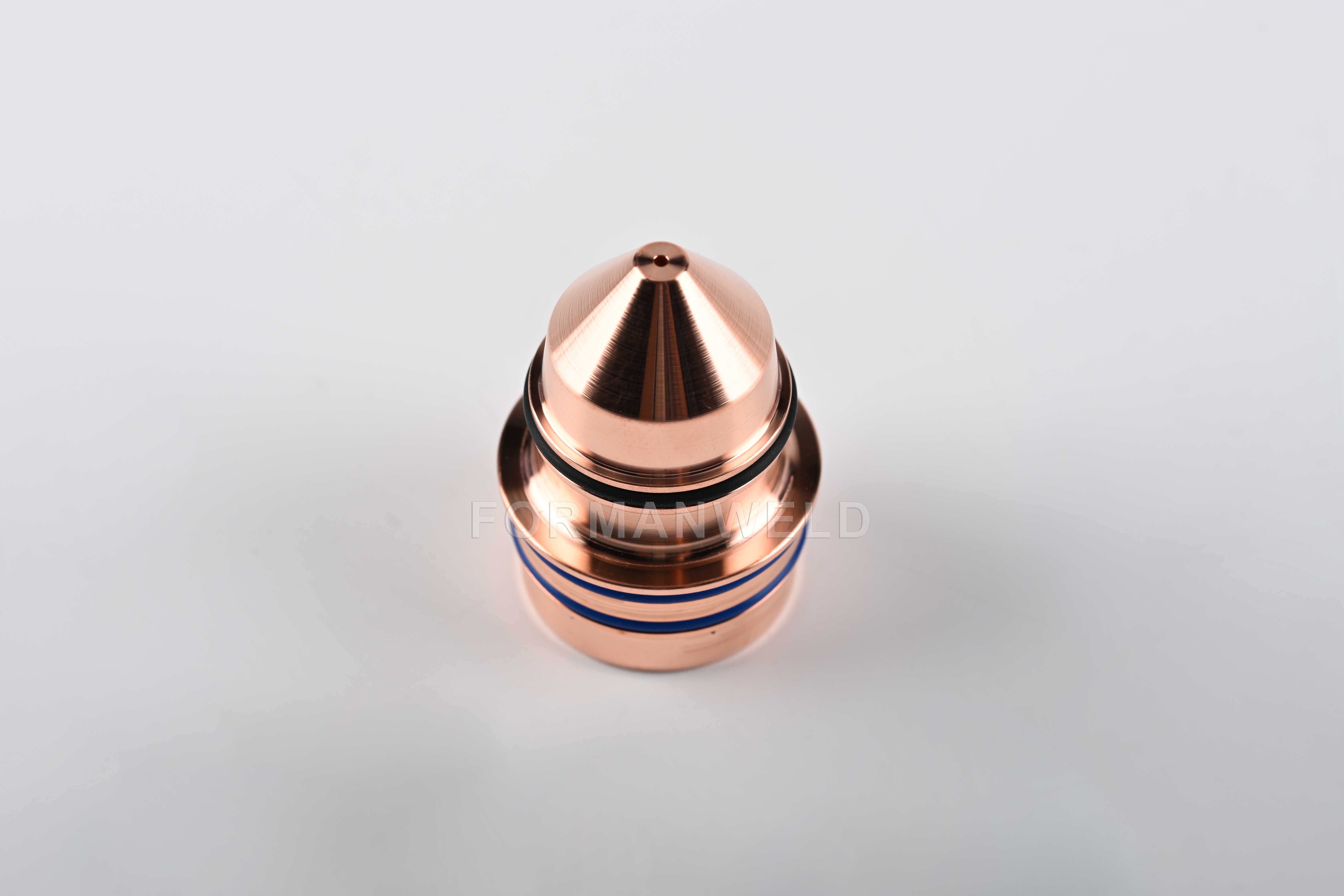

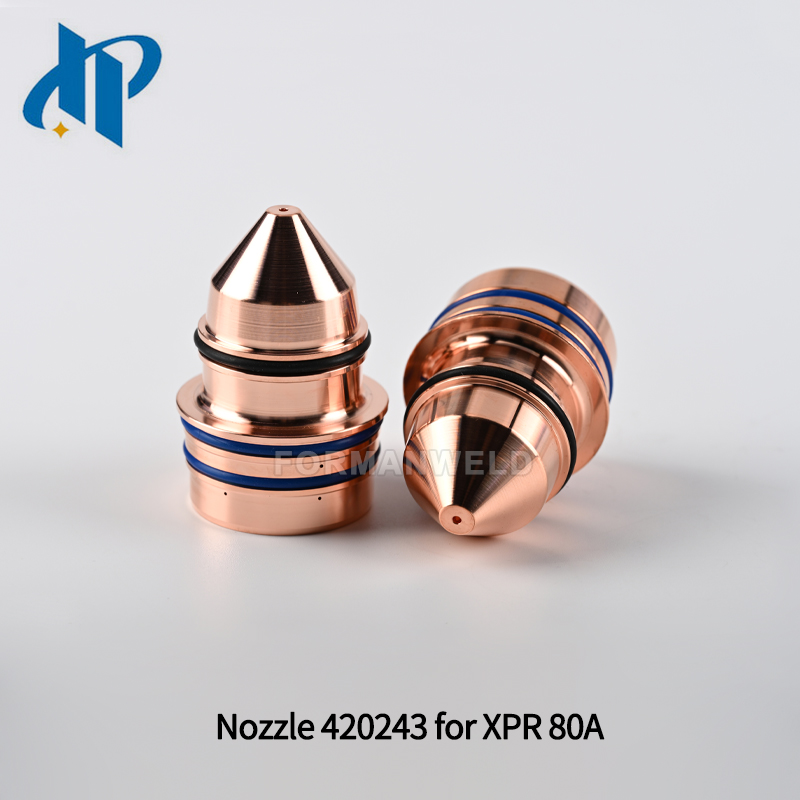

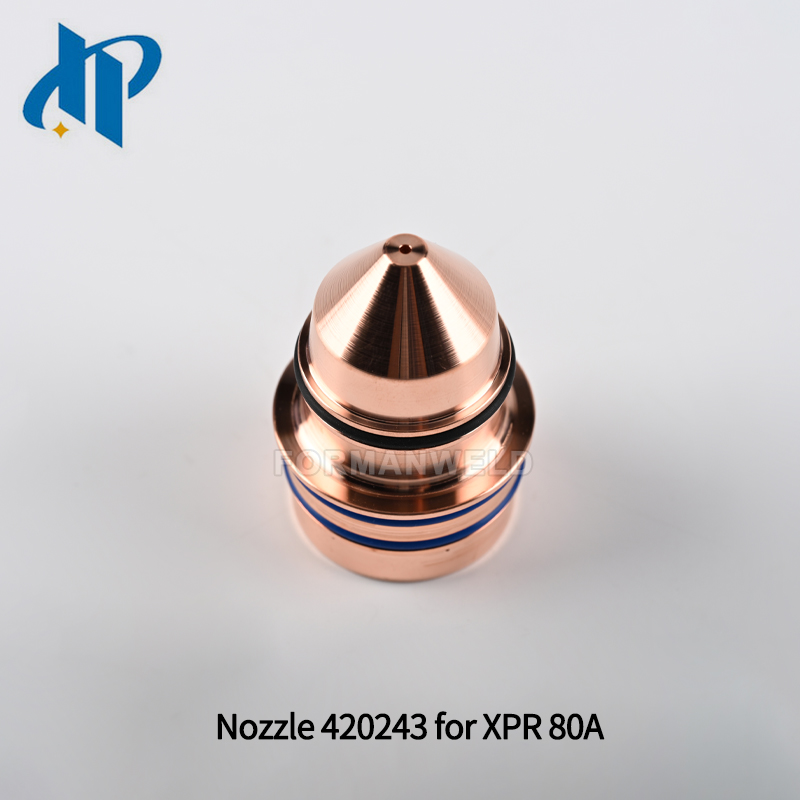

Nozzle FM.420243
Material: High-wear resistance copper alloy
Function: Focuses the plasma arc and controls gas flow for precise cutting
Weight: Approximately 2.11 ounces
Dimensions: 0.39 x 0.39 x 0.39 inches
Shield FM.420246
Material: Durable copper alloy construction
Function: Protects torch components from sparks and molten metal
Weight: Approximately 9.6 ounces
Dimensions: 1 x 1 x 6 inches
Quality Assurance
All Forman Welding consumables undergo rigorous quality control processes, including:
Dimensional verification to ensure precise fit and optimal performance
Material composition testing for durability and heat resistance
Performance validation to meet or exceed OEM specifications
100% inspection before packaging
The quality of these consumables reaches approximately 90% of original equipment manufacturer standards, ensuring reliable performance and consistent results.
Real Shot
Note: All mentioned names, Trademarks and Part No. are the property of their respective manufacturers, all consumables are not original, are manufactured and sold by HFM reference to the original manufacturer is for convenience only
