You can change the 220181 electrode and 220182 Nozzle in your Hyperformance Plasma Torch by following easy steps. Always use parts that fit well, such as the Forman 220181 electrode and 220182 Nozzle, especially the SilverPlus version for enhanced performance. Using the correct 220181 electrode and 220182 Nozzle helps your torch operate safely and ensures clean, precise cuts. Choosing the right 220181 electrode and 220182 Nozzle also saves you money by extending the lifespan of your consumables and preventing unnecessary breakdowns. Practicing good replacement habits with the 220181 electrode and 220182 Nozzle keeps your equipment in top condition and improves your overall work quality.
Always use real Forman 220181 electrodes and 220182 nozzles for the best results and safety.
Check and clean your plasma torch parts often to help them last longer and make sure your cuts are clean.
Wear the right safety gear like gloves and safety glasses to keep yourself safe when you change parts.
Follow the right steps when you put in new parts so you do not break anything and your torch works well.
Write down when you use each part and change the electrode and nozzle when they get worn out, not just when they stop working.
You need the right tools to replace the 220181 electrode and 220182 Nozzle in your Hyperformance Plasma Torch. Start with a clean, dry workspace. Use a soft cloth to wipe down the torch. You will need a wrench that fits the torch body. Some torches require a special spanner or tool designed for the Hypertherm HPR 130 system. Always check your torch manual for any unique tools. Keep a small brush handy to clean dust or metal particles from the torch head. A flashlight helps you see inside the torch when removing or installing parts.
You must use genuine parts for the best results. Choose the Forman 220181 electrode with SilverPlus technology. This part fits perfectly and gives you better performance. Pair it with the 220182 Nozzle for clean, precise cuts. You may also need other compatible parts, such as swirl rings or retaining caps, if your torch requires them. Using the correct 220181 electrode and 220182 Nozzle keeps your torch running smoothly and helps you avoid problems during cutting.
Tip: Always check the part numbers before starting. Genuine parts like the 220181 electrode and 220182 Nozzle work best with your Hyperformance Plasma Torch.
Safety comes first when working with plasma torches. Wear safety glasses to protect your eyes from sparks and bright light. Use heat-resistant gloves to shield your hands from hot parts. A long-sleeve shirt and pants made from flame-resistant material keep your skin safe. You should also wear ear protection if your workspace is noisy. Good safety gear helps you avoid burns, cuts, and other injuries while replacing the 220181 electrode and 220182 Nozzle.
Before you start, make sure your plasma torch is turned off and unplugged. Let the torch cool down if you have used it recently. Always wear your safety gear, including gloves, safety glasses, and flame-resistant clothing. Check your workspace for any clutter or hazards. Keep your tools and replacement parts close by. If you use a Hypertherm HPR130XD torch, check the cooling tubes for leaks or damage. This step helps you avoid accidents and keeps your equipment safe.
Tip: Double-check that you have the correct 220181 electrode and 220182 Nozzle before you begin. Using the right parts prevents problems during installation.
Hold the torch handle firmly.
Unscrew the retaining cap by hand or with the correct tool.
Gently pull out the old nozzle. Set it aside.
Remove the old electrode by sliding it out of the torch head.
Inspect the inside of the torch for dust or metal bits. Use a small brush to clean if needed.
You should never force any part out. If something feels stuck, check for leftover heat or debris.

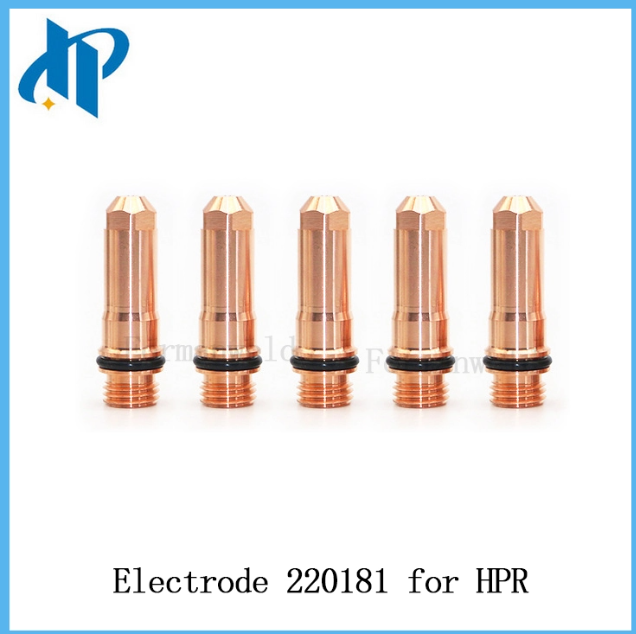

Take the new 220181 electrode out of its package.
Check the SilverPlus core for any visible damage.
Slide the electrode into the torch head until it fits snugly.
Make sure the electrode sits straight and does not wobble.
The SilverPlus core in the 220181 electrode gives you several benefits during installation and use. The silver-infused core improves electrical and thermal conductivity. This feature helps you start the arc easily and keeps the plasma stream stable at 130A. The advanced design also helps the electrode handle heat better and last longer.
Feature | Description |
|---|---|
Electrical and Thermal Conductivity | The silver-infused core enhances conductivity, leading to easier arc starts and a stable plasma stream at 130A. |
Heat Dissipation | Improved heat dissipation compared to standard electrodes, enhancing performance during operations. |
Wear and Erosion Resistance | The combination of SilverPlus core and high-purity copper alloy results in remarkable resistance to wear and erosion at high temperatures, extending operational life. |

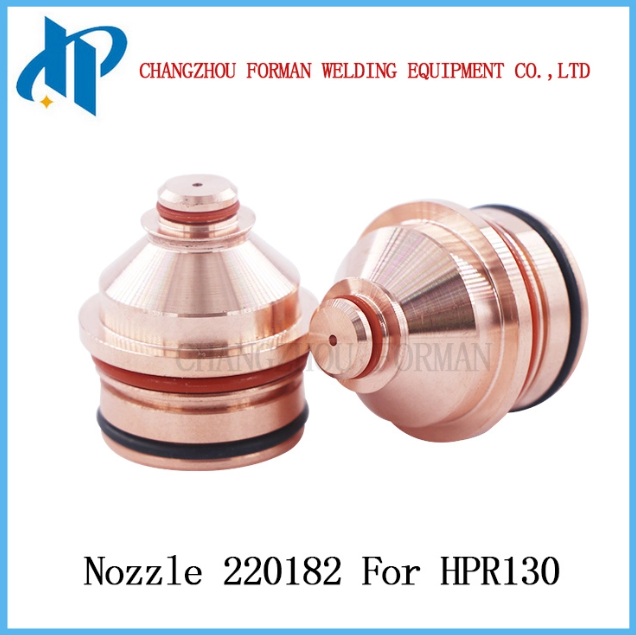

Take the new 220182 Nozzle and check for any dents or cracks.
Align the nozzle with the torch head.
Gently push the nozzle into place.
Screw the retaining cap back on by hand. Do not overtighten.
The 220182 Nozzle works with the 220181 electrode to give you clean, precise cuts. Using both parts together helps your torch perform at its best.
Make sure all parts are tight and secure.
Check that the torch head is clean and free of debris.
Inspect the cooling tubes and connections for leaks.
Plug in the torch and turn it on.
Test the torch on a scrap piece of metal to make sure the arc starts smoothly.
If you notice any sparks, odd noises, or trouble starting the arc, turn off the torch and check your installation. Using the correct 220181 electrode and 220182 Nozzle helps you avoid most common problems.
Note: Always follow your torch manual for extra steps or special instructions.
You need to make sure each part fits correctly in your plasma torch. Check the 220181 electrode and 220182 Nozzle for any signs of damage before you start. Hold each part in your hand and look for dents or cracks. If you see any, do not use them. When you slide the electrode into the torch, it should feel snug but not tight. The nozzle should line up with the torch head. If you feel resistance, stop and check the alignment. A proper fit helps your torch work safely and gives you clean cuts.
Tip: Always match the part numbers on your new parts with the ones in your torch manual.
You can prevent damage by handling each part with care. Do not drop the electrode or nozzle on hard surfaces. Use only your hands or the correct tool to install or remove parts. Never force a part into place. If something does not fit, check for dirt or leftover pieces inside the torch. Clean the area with a soft brush before trying again. Overtightening the retaining cap can also cause cracks. Turn the cap until it feels secure, then stop.
Mistake | How to Avoid It |
|---|---|
Forcing parts | Check alignment first |
Overtightening | Stop when snug |
Using dirty parts | Clean before installing |
Sometimes, you may notice problems after installing new parts. If the torch does not start, check that the electrode and nozzle are seated correctly. Listen for strange sounds or look for sparks that should not be there. If you see uneven cuts or too much dross, the parts may not fit well. Turn off the torch and inspect each part. Clean and reinstall if needed. If problems continue, check your manual or ask a professional for help.
Note: Signs of improper installation include hard arc starts, poor cut quality, or leaks around the torch head.
You should keep your plasma torch parts clean to make them last longer. Dirt and oil can cause problems. Always wear clean gloves when you handle the electrode or nozzle. This keeps oil from your hands off the parts. Use a soft brush to remove dust or metal bits from the torch head. Check the tip of the electrode every few hours. Look for signs of wear, like pits or dark spots. If you see damage, replace the part right away. Clean the nozzle opening with a dry cloth. Never use sharp tools that could scratch the surface.
Tip: A clean torch gives you better cuts and helps your consumables last longer.
You should not wait for the electrode or nozzle to fail before changing them. Set a schedule based on how many hours you use your torch. Many professionals check the electrode tip every two to four hours. Keep a record of how long each part lasts. This helps you know when to replace them next time. Review your cut quality often. If you see rough edges or more dross, it may be time to change the parts. Replace the 220181 electrode, 220182 Nozzle before you notice big problems. This keeps your work smooth and safe.
Recommended Practices:
Wear clean gloves when handling electrodes.
Make sure the electrode is fully seated and tightened to the right level.
Change parts based on hours of use, not just when they break.
Inspect the torch and connections often.
Check the electrode tip every 2-4 hours.
Keep records of part life for different materials.
Look at cut samples to spot trends.
Set replacement times using your own data.
Store your spare electrodes and nozzles in a dry, clean place. Use the original packaging if possible. Keep them away from moisture and dust. Do not stack heavy items on top of your consumables. This prevents dents and damage. Label your storage area so you can find the right part quickly. Good storage keeps your parts ready for use and helps SilverPlus technology last longer.
Note: Proper storage and regular checks help you get the best performance from your plasma torch.
You can change the 220181 electrode and 220182 Nozzle easily. Always pick real Forman SilverPlus parts for better results and longer use. Clean your torch often and check it for damage. Make sure your workspace is safe and neat. Doing regular care stops problems and keeps your cuts smooth. If you have any issues, look at your manual or ask an expert for help.
Remember, using the correct parts and putting them in right helps your plasma torch work its best.
You should check the electrode and nozzle every few hours of use. Replace them when you see wear, pits, or rough cuts. Keeping a log helps you track part life.
Using genuine Forman parts ensures the best performance and safety. Non-genuine parts may cause poor cuts or damage your torch.
You may notice hard arc starts, uneven cuts, or leaks around the torch head. Always inspect and reinstall if you see these signs.
You need a wrench or spanner that fits your torch. Some models require special tools. Check your torch manual for details.
