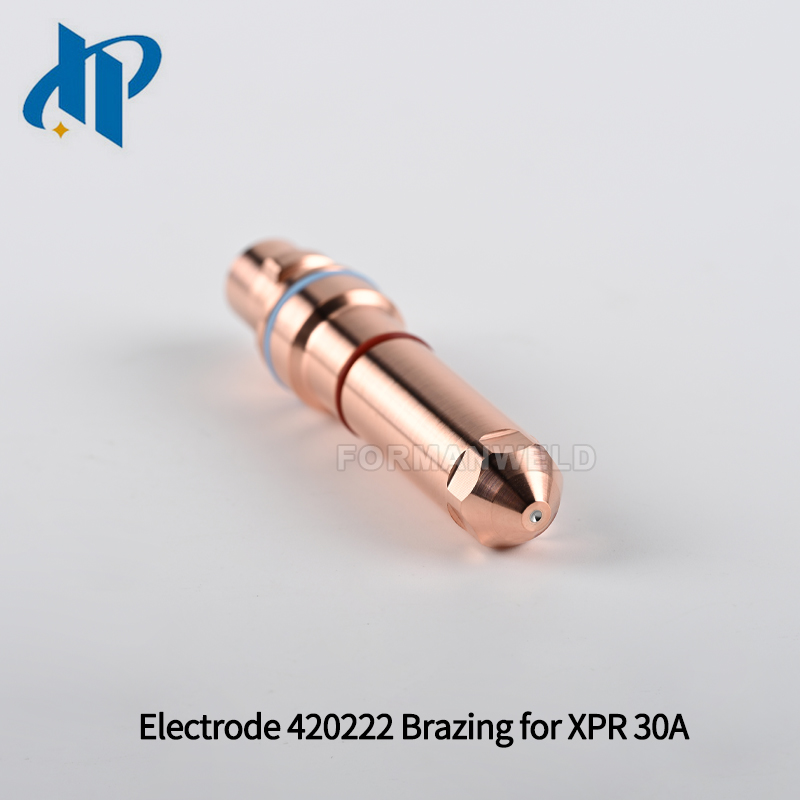

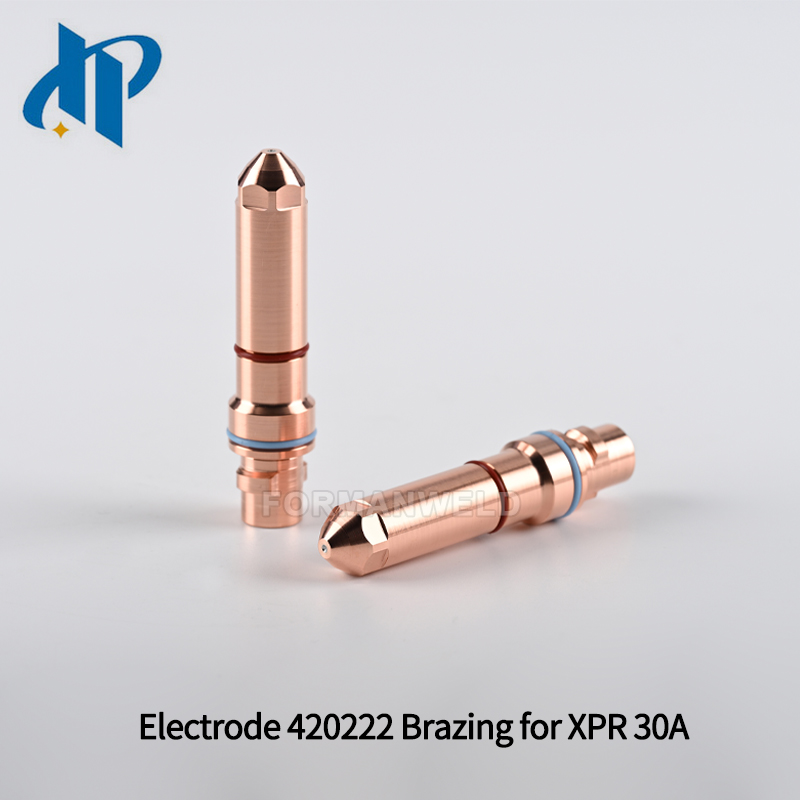

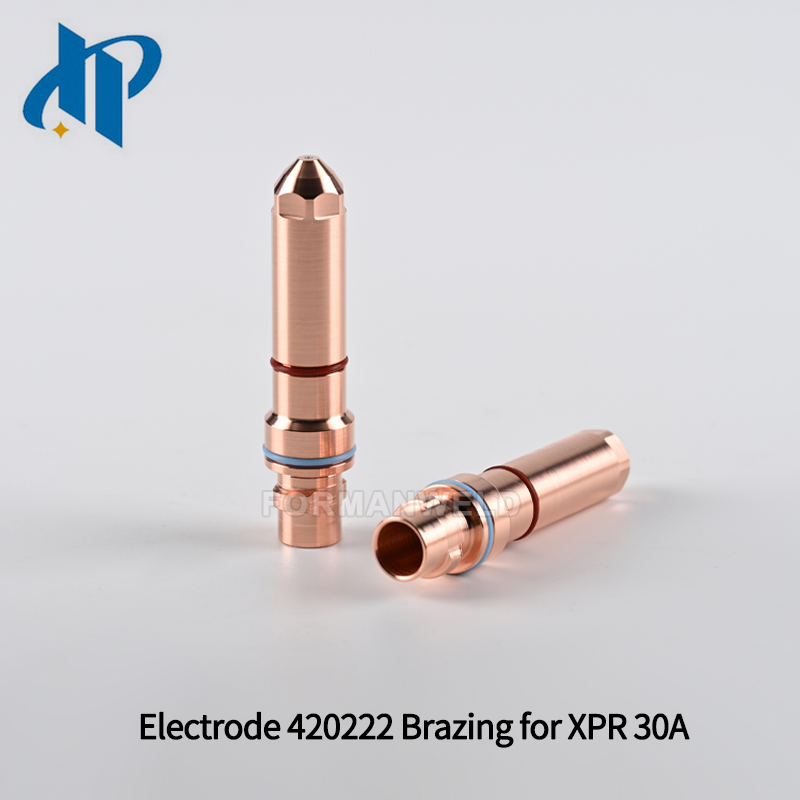

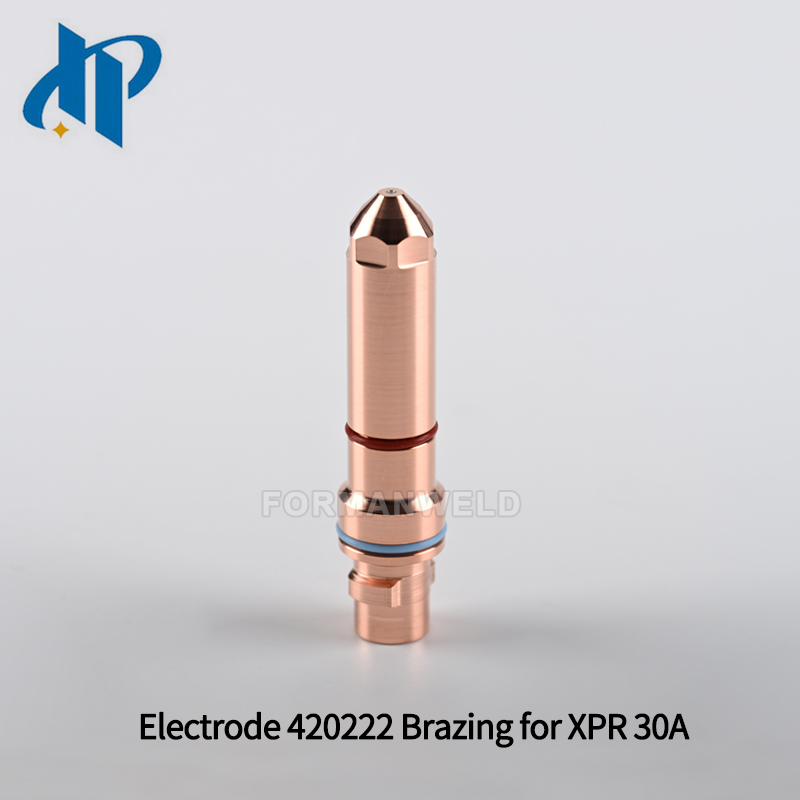

Electrode 420222 Brazing for XPR Plasma Cutting Torch Consumables 30A
We supply plasma cutting parts (Shield, Retaining cap, Nozzle, Swirl ring, Electrode)
We can provide the Hypertherm, Thermadyne, kjellberg and Esab brand.
Real Shot

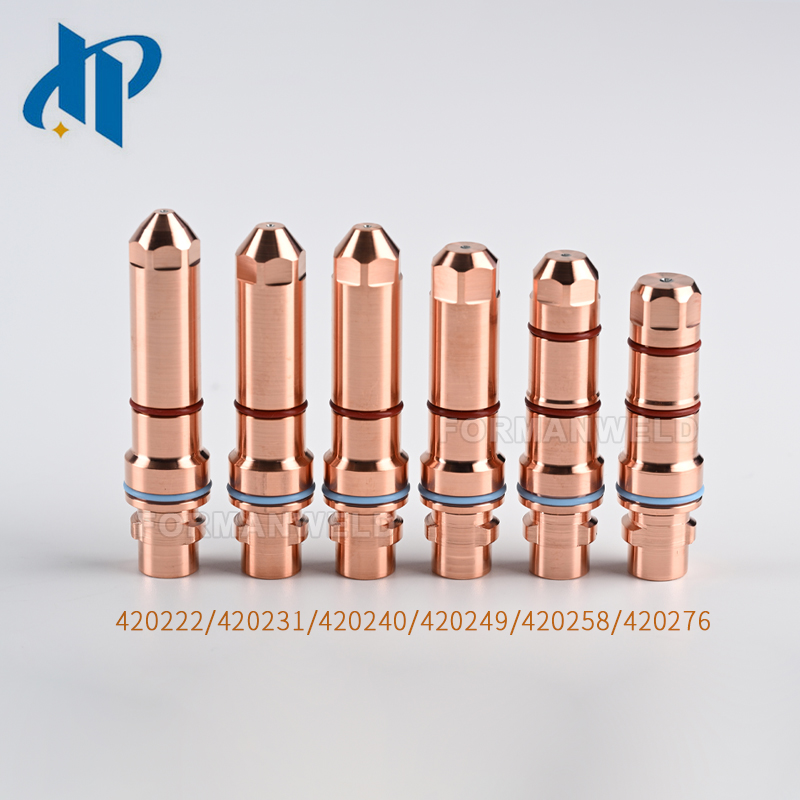

We can provide following consumables of XPR170-300
| No | Part No | Ref No | Description |
| 1 | 420200 | FM420200 | Shield Cap 30A-300A |
| 2 | 420365 | FM420365 | Nozzle Retainin g Cap 30A-300A |
| 3 | 420368 | FM420368 | Water Tube 30A-300A |
| 4 | 420228 | FM420228 | Shield 30A |
| 5 | 420225 | FM420225 | Nozzle 30A |
| 6 | 420407 | FM420407 | Swirl Ring 30A |
| 7 | 420222 | FM420222 | Electrode 30A |
| 8 | 420237 | FM420237 | Shield 50A |
| 9 | 420234 | FM420234 | Nozzle 50A |
| 10 | 420233 | FM420233 | Swirl Ring 50A |
| 11 | 420231 | FM420231 | Electrode 50A |
| 12 | 420246 | FM420246 | Shield 80A |
| 13 | 420243 | FM420243 | Nozzle 80A |
| 14 | 420242 | FM420242 | Swirl Ring 80A-130A |
| 15 | 420240 | FM420240 | Electrode 80A |
| 16 | 420255 | FM420255 | Shield 130A |
| 17 | 420252 | FM420252 | Nozzle 130A |
| 18 | 420249 | FM420249 | Electrode 130A |
| 19 | 420513 | FM420513 | Shield 170A |
| 20 | 420261 | FM420261 | Nozzle 170A |
| 21 | 420260 | FM420260 | Swirl Ring 170A |
| 22 | 420258 | FM420258 | Electrode 170A |
| 23 | 420273 | FM420273 | Shield 220A |
| 24 | 420270 | FM420270 | Nozzle 220A |
| 25 | 420406 | FM420406 | Swirl Ring 170A-300A |
| 26 | 420276 | FM420276 | Electrode 170A-300A |
| 27 | 420491 | FM420491 | Shield 300A |
| 28 | 420279 | FM420279 | Nozzle 300A |
| 29 | 420291 | FM420291 | Shield 40A Non-ferrous |
| 30 | 420288 | FM420288 | Nozzle 40A Non-ferrous |
| 31 | 420314 | FM420314 | Swirl Ring 40A Non-ferrous |
| 32 | 420303 | FM420303 | Electrode 40A-80A Non-ferrous N2 |
| 33 | 420294 | FM420294 | Electrode 40A-80A Non-ferrous Air |
| 34 | 420309 | FM420309 | Shield 60A-80A Non-ferrous |
| 35 | 420297 | FM420297 | Nozzle 60A Non-ferrous |
| 36 | 420323 | FM420323 | Swirl Ring 60A-300A Non-ferrous |
| 37 | 420306 | FM420306 | Nozzle 80A Non-ferrous |
| 38 | 420318 | FM420318 | Shield 130A Non-ferrous |
| 39 | 420315 | FM420315 | Nozzle 130A Non-ferrous |
| 40 | 420356 | FM420356 | Electrode 130A-300A Non-ferrous |
| 41 | 420327 | FM420327 | Shield 170A Non-ferrous |
| 42 | 420362 | FM420362 | Shield 300A Non-ferrous |
| 43 | 420221 | FM420221 | Quick Disconnector |
| 44 | 420220 | FM420220 | Torch Receptacle |
| 45 | 420500 | FM420500 | Torch Sleeve |
Our product code of HPR/XD:
420200,420365,420368,420228,420225,420407,420222,420237,420234,420233,420231,420246,420243,420242,420240,
420255,420252,420249,420513,420261,420260,420258,420273,420270,420406,420276,420491,420279,420291,420288,
420314,420303,420294,420309,420297,420323,420306,420318,420315,420356,420327,420362,420221,420220,420500;
Key Features:
Advanced Brazing Technology: Unique brazing process creates a stronger bond between the hafnium emitter and copper body, significantly reducing the risk of premature failure and extending electrode 420222 lifespan by up to 40% compared to standard electrodes.
Optimized for 30A Applications: Precision-engineered for optimal performance in 30A mild steel cutting applications, ensuring clean starts, stable arcs, and consistent cut quality throughout the electrode's life cycle.
Enhanced Heat Resistance: Specialized brazing materials and construction withstand extreme plasma arc temperatures, maintaining structural integrity and performance stability even during extended cutting sessions.
Perfect OEM Compatibility: Electrode 420222 designed to meet original specifications for seamless integration with Hypertherm XPR300/XPR170 plasma cutting systems - no modifications required.
Cost-Effective Solution: Delivers OEM-comparable performance at 30-50% lower cost, significantly reducing your consumable expenses while maintaining cutting quality.
