Nozzle 120934 compatible with Hypertherm HT4400 Plasma Cutting Torch Consumables 400A

Nozzle 120934 compatible for Hypertherm HT4400 Plasma Cutting Torch Consumables 400A
We supply plasma cutting parts (Shield, Retaining cap, Nozzle, Swirl ring, Electrode)
We can provide the Hypertherm, Thermadyne, kjellberg and Esab brand.


The Nozzle 120934 is a high-performance plasma cutting nozzle specifically designed for Hypertherm HT4400 plasma cutting systems operating at 400A. This premium replacement part is engineered to deliver exceptional cutting performance on mild steel, stainless steel, and aluminum applications, providing clean, precise cuts with extended service life and superior durability.

Technical Specifications

System Compatibility

• Compatible Systems: Hypertherm HT4400 plasma cutting system

• Amperage Rating: 400A

• Material Compatibility: Mild steel (primary), stainless steel, aluminum

• Maximum Cutting Thickness: Up to 76 mm (3 inches) on mild steel

• Pierce Capacity: Up to 50 mm (2 inches) on mild steel

• Duty Cycle: 100% at 400A, 40°C (104°F)

Component Specifications

• Material: High-wear resistance copper alloy

• Function: Focuses the plasma arc and controls gas flow for precise cutting

• Weight: Approximately 2.11 ounces

• Dimensions: 0.39 x 0.39 x 0.39 inches

• Part Number: 120934

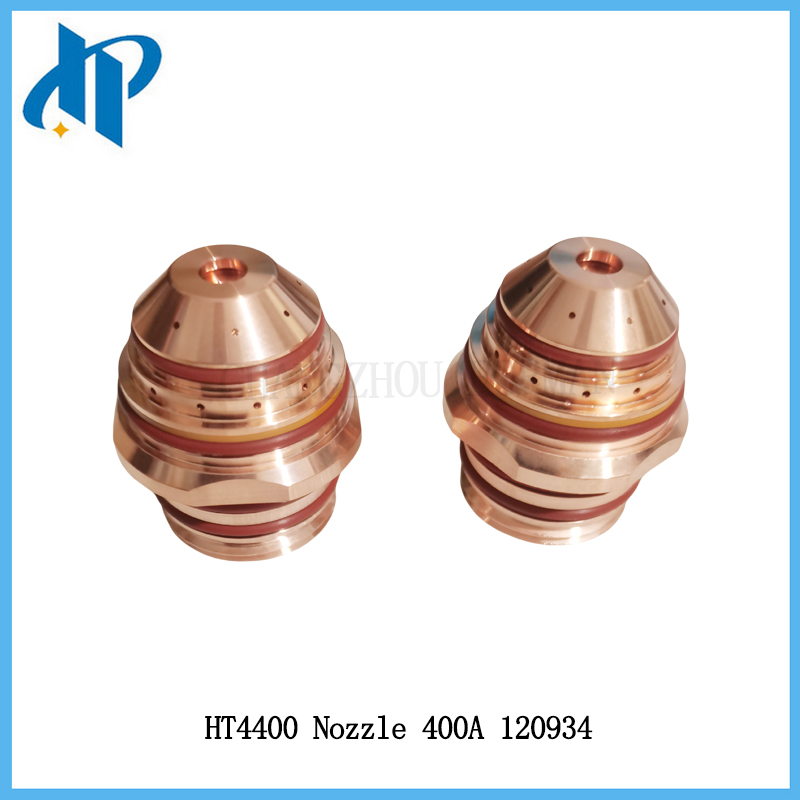

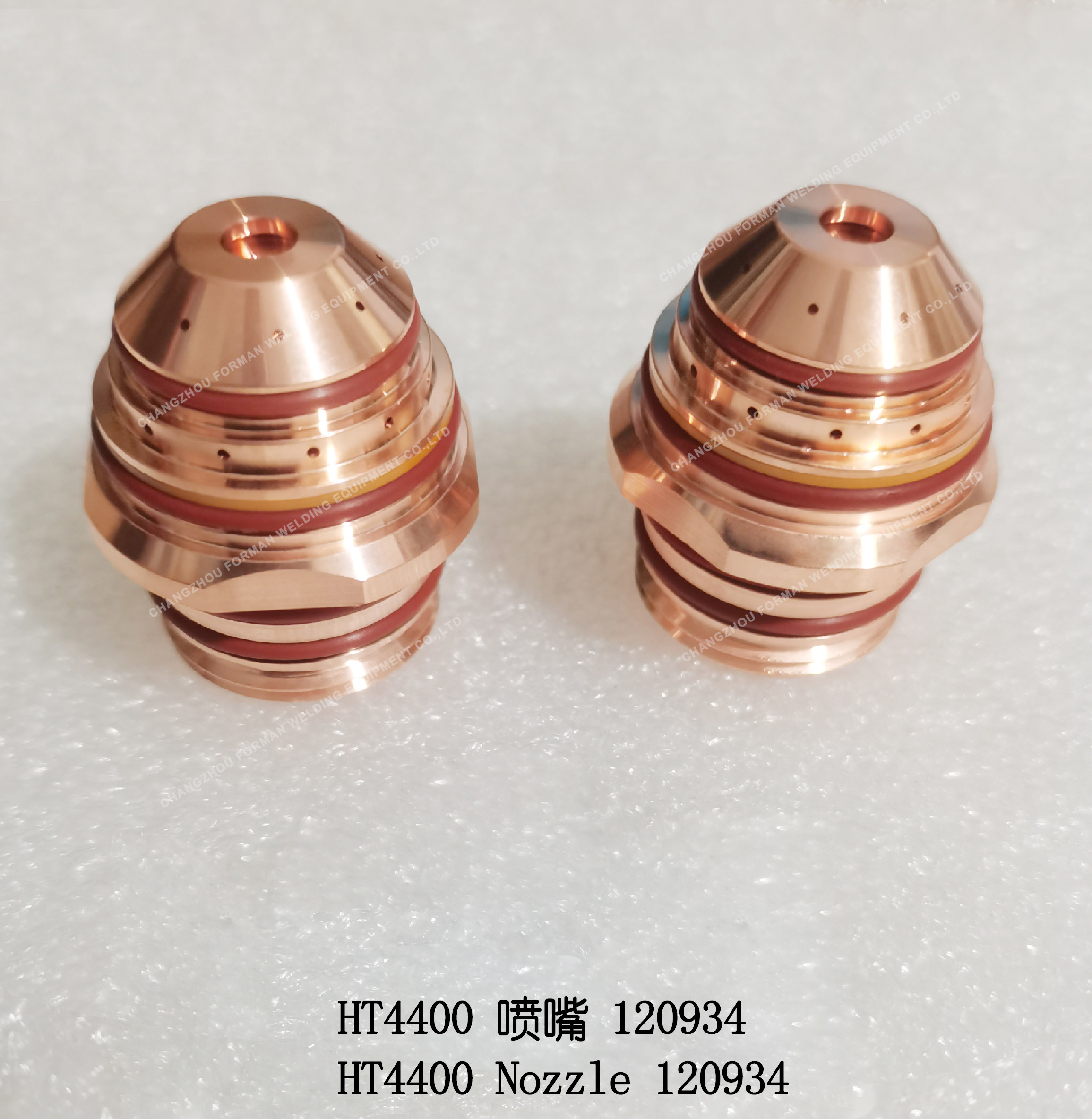

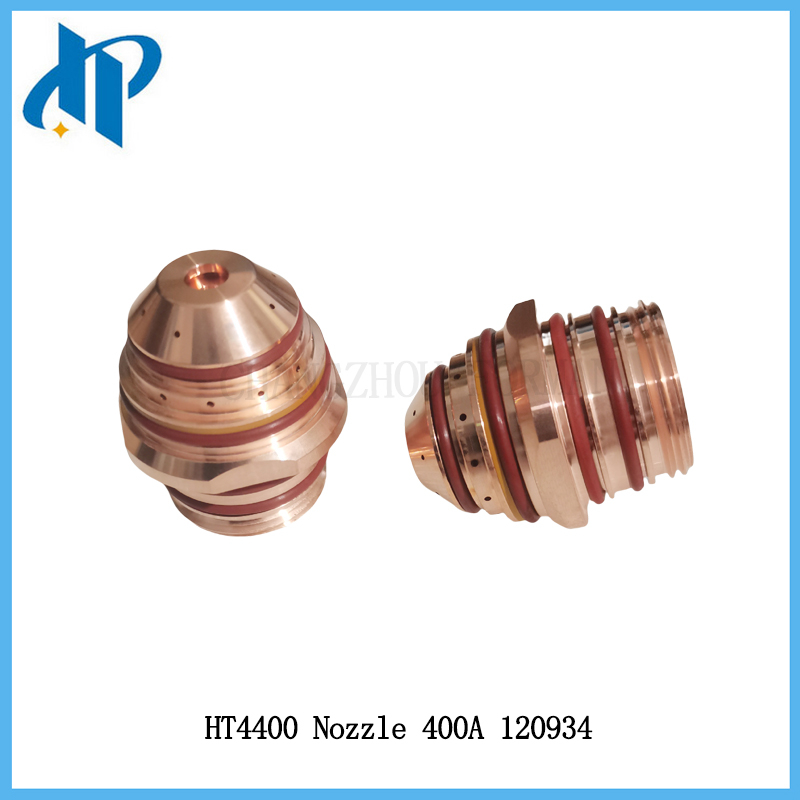

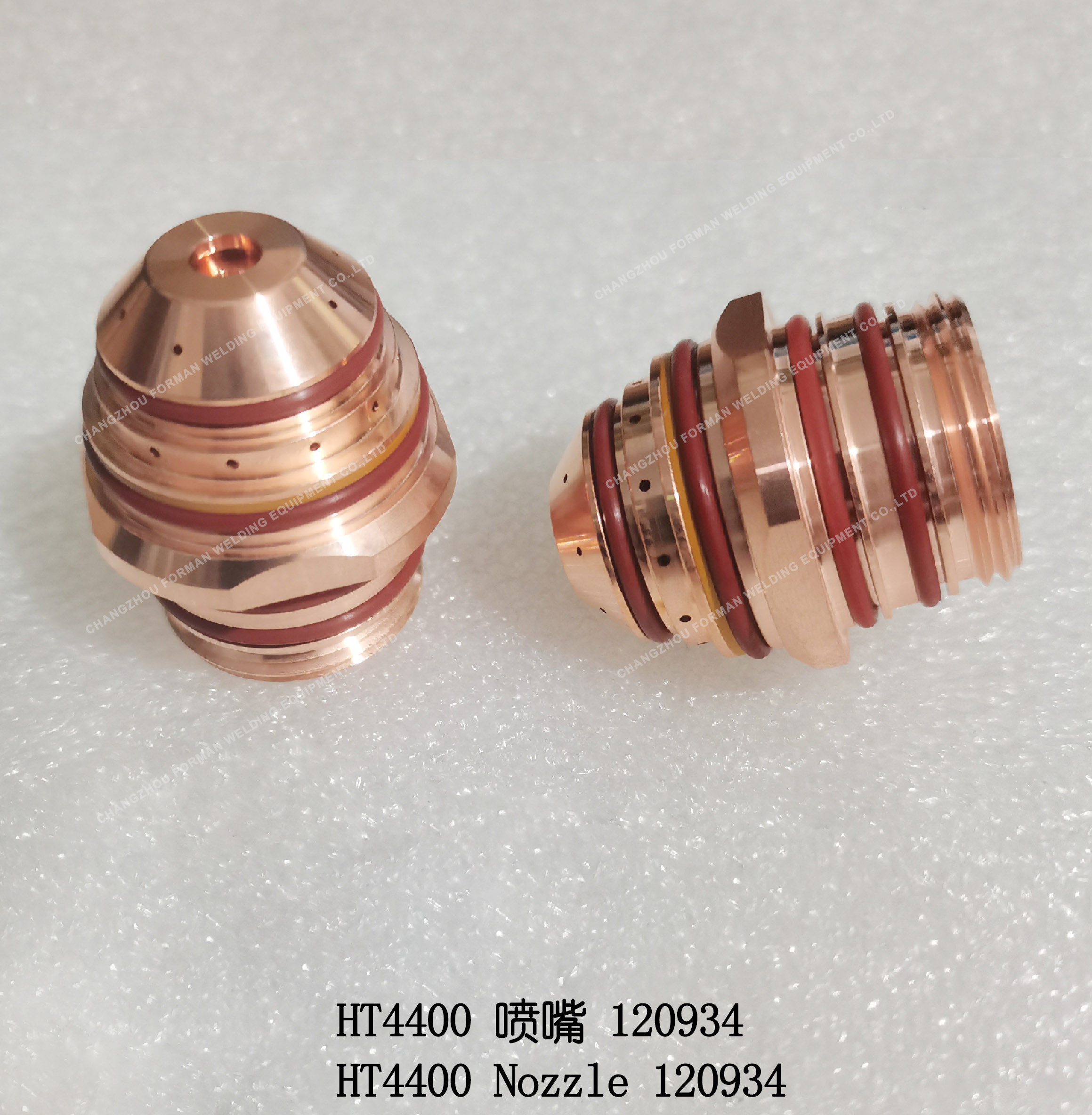

Real Shot
