Hypertherm has established itself as an industry leader in plasma cutting technology, renowned for producing systems that deliver exceptional cut quality and weldability. However, even the most advanced plasma cutting systems require regular maintenance and part replacements to maintain optimal performance. Understanding Hypertherm's replacement parts ecosystem is crucial for metalworking professionals seeking to maximize their equipment's lifespan and cutting precision. This comprehensive guide explores the intricate world of Hypertherm consumables, offering insights into part selection, compatibility, and maintenance strategies that can significantly impact your operational efficiency and cutting costs.

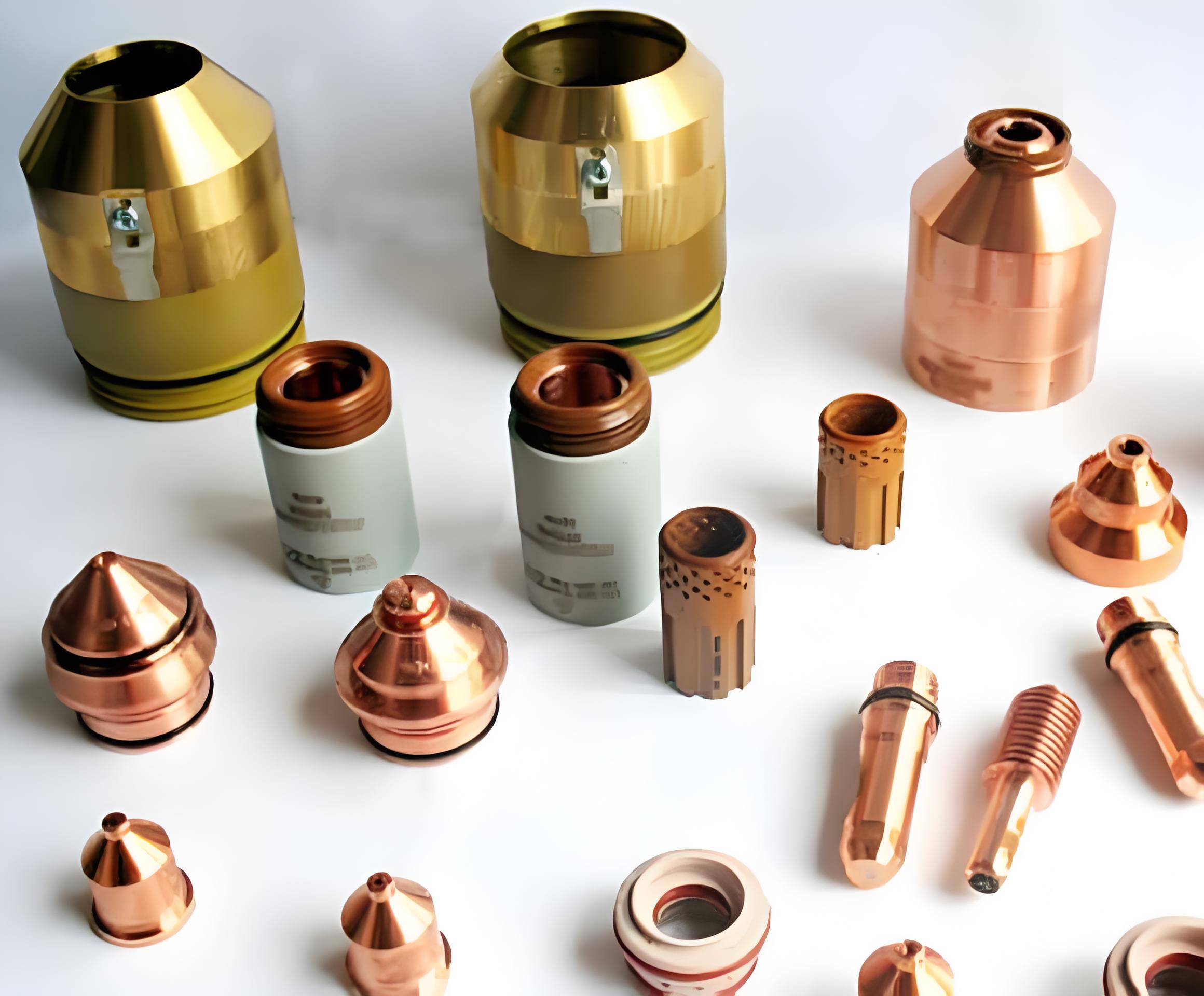

Hypertherm replacement parts form a sophisticated system where each component plays a critical role in the cutting process. From electrodes that initiate the plasma arc to nozzles that focus the intense heat, these consumables work in concert to transform electrical energy into precise thermal cutting power. Proper selection and maintenance of these components not only ensure clean cuts but also protect your valuable plasma cutting system from premature wear and damage.
Plasma cutter consumables are the replaceable components that directly interact with the cutting process. These parts gradually wear down during normal operation and require periodic replacement to maintain cutting quality. The primary consumables include electrodes, nozzles, swirl rings, retaining caps, and shield caps. Each component serves a specific function in creating and controlling the plasma arc that melts through metal with precision.
The electrode is perhaps the most critical consumable, containing a small piece of hafnium or tungsten that emits electrons to create the plasma arc. As this emitter material gradually depletes with use, the electrode must be replaced before it fails completely. Nozzles focus the plasma stream and control arc characteristics, directly influencing cut quality and speed. Swirl rings impart a swirling motion to the plasma gas, stabilizing the arc and protecting other components from heat damage. Retaining caps hold the consumables assembly together, while shield caps protect the entire assembly from physical damage and molten metal splash.
Understanding the interaction between these components is essential for recognizing when replacements are necessary. Worn consumables not only produce inferior cuts but can also damage the torch body and other system components, leading to more expensive repairs. Regular inspection and timely replacement of these parts represent a proactive approach to maintenance that pays dividends in consistent performance and reduced downtime.
Hypertherm designs its replacement parts with specific compatibility across various plasma cutting systems. This strategic approach allows users to maintain multiple systems with overlapping consumable inventories, simplifying maintenance and reducing spare part requirements. For instance, the 220842 style electrode is compatible with Hypertherm H65 and H85 plasma torches used on Powermax45XP, Powermax65, and Powermax85 systems . Similarly, the 220819 nozzle works with Powermax65, Powermax85, Powermax105, and Powermax125 plasma cutting systems .
This compatibility extends across various Hypertherm product lines. The T60/T60M style parts service both Powermax 1000 and Powermax 1250 systems, with components like the 120926 electrode and 120925 swirl ring being interchangeable between these models . The MAX80 and MAX100 systems share consumables such as the 020194 swirl ring and various amp-rated nozzles, providing flexibility for shops operating multiple Hypertherm systems .
However, it's crucial to verify compatibility for specific applications, as even similar-looking components may have subtle differences affecting performance and safety. Hypertherm provides detailed compatibility charts, and reputable suppliers offer guidance to ensure proper part selection. Using incorrect consumables can lead to poor cut quality, accelerated wear of other components, and potential safety hazards.
The Powermax 45XP, 65, and 85 systems represent some of Hypertherm's most popular plasma cutters, known for their versatility and performance across a wide range of metal cutting applications. These systems share many consumables, simplifying inventory management for facilities running multiple units.
The 220842 electrode serves as a critical component across these systems, typically sold in 5-packs with premium quality long-life design . Nozzles vary by amperage requirements: the 220941 (45 amp), 220819 (65 amp), and 220816 (85 amp) each optimize cutting performance for their respective power levels . The 220857 swirl ring, constructed from high-temperature Vespel material, provides excellent thermal protection for the electrode and nozzle .
Shielding components include the 220818 hand shield cap for drag cutting applications and the 220817 mechanized shield for automated systems . The 220854 retaining cap secures the entire consumable assembly within the torch . These components work together to deliver precise cuts across various material types and thicknesses.
Hypertherm offers convenient consumable kits for these systems, such as the Powermax85 Essential Handheld Cutting Consumable kit (851468), which includes drag cutting shields, nozzles, electrodes, retaining caps, swirl rings, lubricant, and O-rings in a plastic storage case . Similarly, the Powermax65 kit (851465) contains a balanced selection of consumables designed to extend operational time between replacements .
The higher-amperage Powermax 1000 and 1250 systems require robust consumables designed to handle increased thermal demands. The T60/T60M and T80/T80M style parts serve these powerful cutters with components engineered for extended life and consistent performance.
Key consumables include the 120926 electrode (5-pack), which provides the arc initiation point for these systems . Nozzle options include shielded varieties like the 120931 (60 amp) and 120927 (80 amp), as well as unshielded versions such as the 220007 (60 amp) and 120980 (80 amp) for different cutting applications . The 120925 swirl ring ensures proper gas flow, while the 120928 shield cap retainer and 120929/120930 shield caps (hand and machine versions) complete the assembly .
These components are designed to withstand the higher thermal loads encountered with thicker materials, featuring enhanced cooling characteristics and more durable construction than their lower-amperage counterparts. Proper selection between shielded and unshielded configurations depends on specific cutting requirements and material handling considerations.
Hypertherm's MAX series plasma cutters utilize consumables designed for heavy-duty industrial applications. The MAX80 and MAX100 systems share components such as the 120433 long-life electrode and various amp-rated nozzles including 020203 (40-amp standard), 020345 (80-amp standard), and 020195 (100-amp standard) .
The consumable system for these industrial-grade cutters includes specialized components like the 020184 standard nozzle retaining cap and 020336 contact nozzle retaining cap, with corresponding 020335 contact shield cap spacer and 020334 machine shield cap spacer . These components allow for precise configuration based on cutting mode requirements.
For operations running MAX70, MAX80, and MAX100 systems, the interchangeability of components like the 020334 machine shield (100 amp) provides significant inventory advantages . This compatibility across systems reduces the number of distinct spare parts needed, streamlining maintenance procedures.
Timely replacement of plasma cutter consumables is critical for maintaining cut quality and preventing secondary damage to more expensive components. Several indicators signal the need for replacement:
Nozzle wear typically manifests as an enlarged or oval-shaped orifice, which degrades arc focus and cut quality. For Powermax65 systems, experts recommend replacement when the sixth nozzle shows these signs of wear . Electrode deterioration occurs as the hafnium emitter depletes, visible as pitting on the tip. Replacement is advised when pit depth exceeds 1/32 inch .
Retaining caps should be replaced when cracks appear, as compromised integrity can lead to improper alignment of internal components . Shield caps require replacement when slag accumulation becomes significant or physical damage is evident, as this affects arc protection and cutting consistency .
Establishing a regular inspection routine allows operators to identify these wear patterns early, preventing unexpected downtime and maintaining consistent cut quality. Many experienced operators keep spare consumables on hand, particularly for high-use components, to minimize interruption to workflow when replacements are necessary.
Hypertherm offers replacement parts both individually and in pre-packaged kits, each approach offering distinct advantages depending on usage patterns and operational requirements. Individual parts provide flexibility for addressing specific component failures, while kits offer convenience and cost savings for comprehensive maintenance.
Consumable kits like the Powermax85 Essential Handheld Cutting Consumable kit (851468) typically include a balanced assortment of components: drag cutting shields, nozzles, electrodes, retaining caps, swirl rings, lubricant, and O-rings . Similarly, the Powermax65 kit (851465) contains a silicone lubricant, O-rings, drag shields, retaining caps, swirl rings, nozzles, and electrodes .
The economic advantage of kits is significant—they typically cost less than purchasing the same components individually while providing a complete maintenance solution. For example, the Powermax65 kit offers savings compared to buying all parts separately, plus includes a case for organization and storage . This approach also ensures that operators maintain the proper ratio of components, preventing situations where one worn part accelerates the deterioration of others.
For high-volume operations, purchasing individual components in bulk may provide additional savings. Many suppliers offer 5-packs or 10-packs of high-consumption items like electrodes and nozzles at discounted rates . The optimal strategy depends on usage patterns, with kits generally preferable for routine maintenance and bulk purchases advantageous for high-wear components.
The plasma cutting market offers various sources for Hypertherm replacement parts, ranging from genuine OEM components to compatible alternatives. Each option presents different considerations for quality, cost, and availability.
Genuine Hypertherm parts ensure exact compatibility and performance, backed by the manufacturer's quality standards and warranty protection. These components are available through authorized distributors like Baker's Gas & Welding Supplies , Welding Direct , and Welder Supply . These suppliers typically offer same-day shipping and competitive pricing on authentic Hypertherm components.
Compatible aftermarket parts provide a cost-effective alternative for many applications. Manufacturers worldwide produce components designed to meet or exceed OEM specifications, often at lower price points . While these parts can offer excellent value, users should verify quality standards and compatibility before purchasing.
When sourcing replacement parts, considerations should include material quality (especially for critical components like electrodes), manufacturing tolerances, and supplier reputation. For mission-critical applications, genuine Hypertherm parts typically provide the most reliable performance, while compatible alternatives may suffice for less demanding applications.
While all plasma cutter consumables have finite lifespans, proper operation and maintenance practices can significantly extend their service life, reducing operating costs and downtime. Several key practices contribute to prolonged consumable performance:
Maintaining correct cut height prevents premature nozzle wear by minimizing arc flare and secondary arc damage. Using the appropriate amperage setting for material thickness reduces unnecessary thermal stress on components. Ensuring clean, dry air supply prevents contamination that accelerates electrode and nozzle deterioration. Proper air pressure maintains adequate cooling and arc stability.
Following recommended pierce height and duration minimizes splashback damage to shields and nozzles, particularly when cutting thicker materials. Implementing regular inspection routines allows for proactive replacement before failed components cause secondary damage. Proper torch assembly with recommended lubrication ensures even wear and prevents premature failure due to misalignment.
Operator training plays a crucial role in consumable life extension. Understanding the relationship between cutting techniques and component wear enables operators to make adjustments that preserve consumables without compromising cut quality. These practices, combined with genuine or high-quality compatible parts, optimize the total cost of ownership for Hypertherm plasma cutting systems.
Hypertherm replacement parts represent a sophisticated system of interconnected components that collectively determine plasma cutting performance, quality, and operating costs. Understanding the compatibility, function, and maintenance requirements of these consumables empowers metalworking professionals to maximize their equipment investment.
By selecting appropriate components for specific systems and applications, recognizing wear patterns before they affect cut quality, and implementing proactive replacement strategies, operators can maintain consistent performance while controlling operational expenses. Whether opting for genuine Hypertherm parts or quality-compatible alternatives, the key to optimal plasma cutting lies in informed consumable management.
The comprehensive ecosystem of Hypertherm replacement parts—from electrodes and nozzles to shields and retainers—provides the foundation for precision metal cutting across industries. With proper selection, maintenance, and operation, these components deliver the reliability and performance that has made Hypertherm the industry standard in plasma cutting technology.
