The Guide to Plasma Cutting Consumables

Choosing the right plasma cutting consumables makes a big difference in your results. You need to match them to your plasma cutter, your cutting job, and the material you want to cut. If you use the correct parts, you get smooth cuts and your plasma consumables last longer.

• The right match prevents equipment damage and keeps your warranty safe.

• Different metals need special consumables based on their type and thickness.

• Worn parts can cause rough edges and extra cleanup.

Keep your plasma cutter’s manual and material details nearby. This helps you make the best choice for your project.

Key Takeaways

• Pick the correct plasma cutting consumables for smooth cuts and parts that last longer.

• Check your plasma cutter’s manual to make sure parts fit your model and meet its needs.

• Use consumables charts to match parts with the material, thickness, and amperage for good results.

• Look at your consumables often and take care of them to stop wear and keep cuts safe and clean.

• Keep consumables in a cool, dry spot so they do not get damaged and last longer.

Plasma Cutter Compatibility

Find Model Specifications

First, find out what plasma cutter model you have. Check the label on your machine or look in the manual. This tells you the model number and other important details. You need this information to pick the right plasma cutter consumables. Every plasma cutter needs certain parts to work well and safely. Using the correct parts helps your machine work better and keeps you safe.

Here is a table that lists the main things that matter for compatibility:

If you use the wrong plasma consumables, your machine can get damaged. You might have to pay a lot to fix it or even buy a new one. Always use the parts made for your plasma cutter model.

Check Manufacturer Guidelines

Manufacturers test plasma cutter consumables for their machines. You should look in the manual or on the supplier’s website for the right parts. They check how well the parts work and if they fit right. A compatibility matrix helps you find the best consumables for your job.

• Manufacturers give reports that show the arc starts well.

• They check how long the electrode lasts during normal use.

• Good suppliers make sure the consumables are the right size and shape.

Tip: If your CNC cutting table has an ohmic sensing circuit, use shielded consumables. If it does not, use unshielded consumables. The ohmic sensing circuit helps you know which type to pick.

You keep your plasma cutter safe and get better results by following these tips. Using the right parts also keeps your warranty and makes your consumables last longer.

Selecting the Right Plasma Cutting Consumables

Image Source: pexels

Match to Material and Amperage

You have to pick plasma cutting consumables that fit your material and the amperage of your plasma cutter. This helps your machine work well and keeps your cuts smooth. Each metal and thickness needs special parts and settings. If you use the wrong parts, your cuts may look rough or your consumables may wear out fast.

When you choose plasma consumables, think about these things:

• Cutting speed and torch distance can change how long parts last. Moving too fast can make parts wear out quicker.

• Make sure every part is put in right and fits tight. This helps everything work as it should.

• Watch for worn parts so you can change them before they cause problems.

You also need to know how much amperage your job needs. Here is a simple list to show how amperage matters:

1. Thicker metal needs more amperage for a clean cut.

2. The kind of metal matters. Stainless steel, aluminum, and mild steel each need different amperage.

3. How fast you cut changes the amperage you need. Going too fast or slow can hurt your results.

4. If you want detailed cuts, use lower amperage.

5. Your plasma cutter has a top amperage limit. Always check your machine before you start.

You can use a table to see which nozzle and gas work best for each metal:

Tip: Always look at your plasma cutter manual for the best settings and parts. This helps you pick what works best for your job.

Use Consumables Charts

Consumables charts help you pick the right parts for your job. These charts show which parts to use for each metal, thickness, and amperage. You can find these charts in your manual or on the maker’s website.

A normal plasma cutting consumables chart has:

You should use these charts to get the best results. Picking the right parts makes your cuts better and faster. Some nozzles and electrodes work better for certain metals. The operator’s manual gives you the right details.

Professionals use charts from brands like Hypertherm and Thermal Dynamics. These charts help you avoid using the wrong parts that could hurt your torch or make your cuts worse. Picking the right parts helps your consumables last longer and saves money on repairs. Buying kits and using charts helps you keep track of your parts and makes sure you always have what you need.

Note: The quality of plasma consumables can be different between brands. Hypertherm and Thermal Dynamics make high-quality parts that work well every time. Cheaper brands may not give you the same good results.

If you follow these steps and use the charts, your plasma cutter will work better and last longer. Always pick parts that match your metal, thickness, and amperage. This helps you get the best cut every time.

Consumable Types and Their Roles

Image Source: pexels

Main Consumables Overview

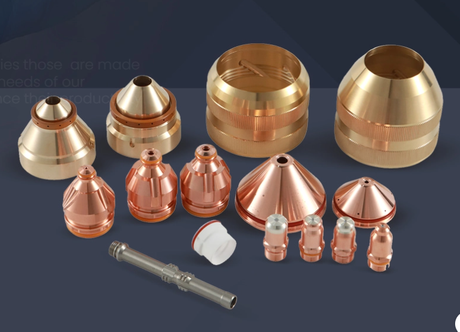

You need to know the main parts inside your plasma cutting torch consumables. Each part has a special job. The table below shows the different types of plasma consumables and what they do:

Swirl rings and shields work together to keep the arc steady and the torch cool. The electrode and nozzle are the heart of the system. You need all these plasma consumables for your plasma cutter to work well.

Impact on Cut Quality

The condition and design of your plasma cutting consumables change how your cuts look and how fast you can work. If you want optimal performance, you must check your consumables often. Here are some tips:

• Inspect plasma consumables for wear before every job.

• Replace worn electrode and nozzle at the same time for the best results.

• Do not over-lubricate O-rings.

• Use genuine parts for optimal performance and longer life.

Swirl rings and shields help you get smooth edges and reduce dross. The electrode and nozzle control the arc shape and cutting speed. If you use the wrong size or a worn part, your cutting speed drops and your cuts get rough. Torches with good swirl rings and shields can cut faster and cleaner.

Different types of plasma consumables fit different jobs. Precision systems use special gases and tight designs for high-quality cuts. Conventional systems use shop air and work well for simple jobs. You get better cutting quality and faster cutting speed when you use the right parts for your torch.

Tip: Always use the right plasma cutting consumables for your material and amperage. This keeps your plasma cutter running well and gives you the best results.

Maximizing Consumable Life

Installation and Maintenance

You can make your plasma consumables last longer by following good installation and maintenance habits. Start by always using the right parts for your plasma cutter. Clean each part before you install it. Make sure everything fits tightly and lines up correctly. If you use higher-quality parts, you will see better results and save money over time.

Here are some tips to help you get the most out of your plasma consumables:

• Use the correct cutting speed for your material. Going too fast or too slow can wear out parts quickly.

• Clean your machine after every use. Dirt and debris can damage the torch and shorten the life of your consumables.

• Check your air supply. Moisture in the air can harm your consumables, so use a water separator with your compressor.

• Inspect all parts for wear before each job. Replace anything that looks damaged or worn.

• Store electrodes and other parts in a cool, dry place to prevent rust and moisture damage.

• Set your amperage and gas pressure to match your material and consumables.

Regular maintenance can reduce downtime by up to 30%. You will also get cleaner cuts and better precision if you keep your machine in good shape.

Signs of Wear

Knowing when to replace plasma consumables is important for safe and clean cuts. Watch for these signs that show it is time to change parts:

You should also look at each part:

• Replace the outer retaining cap if you see dents or slag build-up.

• Change the shield cap if it is burnt, bent, or out of shape.

• Swap out the nozzle when the hole is no longer round.

• Install a new electrode if the emitter rod looks worn.

If you use regular maintenance and replace worn parts early, you will keep your plasma cutter running smoothly. This helps you avoid costly repairs and keeps your work safe and accurate.

You get the best results when you use the right plasma consumables with your plasma cutter. Always look at your manual and ask your supplier if you need help. Check your plasma consumables often and change parts like electrodes and nozzles when they look worn out. Pick trusted brands like Hypertherm because they last longer and work better. If you store and take care of your plasma consumables, you can save a lot of money every year. Watch for signs that parts are wearing out and keep everything organized so your cuts stay safe and clean.

FAQ

How often should you replace plasma cutting consumables?

You should check your consumables before every job. Replace them when you see worn nozzles, rough cuts, or extra dross. Using fresh parts gives you cleaner cuts and keeps your machine safe.

Can you mix different brands of consumables?

You should not mix brands. Each plasma cutter works best with parts made for it. Mixing brands can cause poor performance or damage your torch.

What happens if you use worn consumables?

Worn parts make your cuts messy and unsafe.

How do you store plasma consumables?

• Keep parts in a dry, cool place.

• Use sealed containers to stop rust.

• Label each part for easy use.

Good storage keeps your consumables ready for every job.
