You need powermax 125 consumables to keep your plasma cutter working well. These kits have parts that help the machine make a steady arc. They also help the machine give clean cuts. If you pick real kits, you follow rules that keep your equipment safe. Studies show that real parts work better with your machine. They help stop dross and keep the arc steady. This means your machine lasts longer and your cuts look neat.
Powermax 125 consumables kits help your plasma cutter work well. They have parts that make cuts clean and smooth.
Using real consumables helps you save money over time. They lower repair costs and make your cuts better.
Check your consumables often for damage or wear. Change parts when needed to stop bad cuts and protect your machine.
Do the right steps when you install and use your plasma cutter. Make sure everything is lined up and clean.
Take care of your plasma cutter by using clean air and setting torch height right. This helps your consumables last longer and makes your cuts better.

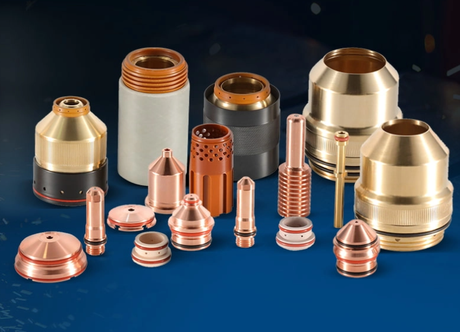

You use powermax 125 consumables kits to keep your plasma cutter working at its best. These kits include all the parts you need to make clean and steady cuts. Each part has a special job in the cutting process. When you open a standard kit, you find several important items:
Shields (2 of 220976, 1 of 420168)
Retaining Cap (1 of 220977)
Nozzles (4 of 220975 for 65-125 amp, 1 of 420158 for 30-45 amp, 1 of 420169 for 45-65 amp)
Swirl Ring (1 of 220997)
Electrodes (6 of 220971 for 30-125 amp)
You need each part to help the plasma cutter make a strong arc. The arc melts metal and lets you cut through it. If you use the right kit, you get better results and fewer problems.
Tip: Always check your kit before starting a job. Missing parts can cause poor cuts or damage your machine.
When you open a powermax 125 consumables kit, you see many key parts. Each part helps your plasma cutter work well and safely. Here is what each part does.
The electrode is in the center of the torch. It carries electricity to start the plasma arc. The tip gets very hot and melts some metal. This lets you cut through the metal. A good electrode keeps the arc strong and steady. If it wears out, your cuts look bad and you get more dross.
The nozzle shapes and guides the plasma arc. Its design keeps the arc steady, even if you change how you cut. Inside, the nozzle stops the arc from going out. This means your cuts are smoother and you do not have to stop often. Always check the nozzle for damage before you cut.
The retaining cap holds the nozzle in place. It keeps the nozzle away from the metal plate. This stops double arcing, which can hurt your torch and ruin your cuts. The cap also cools the nozzle. This helps you get better cuts and makes the parts last longer. Make sure the cap fits tight and has no cracks.
The shield keeps the nozzle safe from hot splatter. It protects you and your machine from damage. The shield also swirls the plasma gas. This keeps the arc steady and stops double arcing. Swirling helps your cuts look better. The shield keeps the nozzle safe and makes the parts last longer.
Tip: Check the shield for damage or wear before you cut. A good shield keeps you safe and helps your cuts look neat.
Shield Functions Table
| Shield Role | Benefit |
|---|---|
| Protects nozzle | Stops equipment damage |
| Cools nozzle | Keeps operator safe |
| Swirls plasma gas | Makes cuts better |
| Isolates nozzle electrically | Makes parts last longer |
The swirl ring sits between the electrode and nozzle. It moves the plasma gas in a spiral. This spiral keeps the heat just right for cutting. It also keeps the nozzle from getting too hot. The swirl ring helps you make clean cuts and makes the parts last longer.
The Hypertherm cartridge is a new part in some kits. It replaces five old parts with one piece. This makes it easy to use and install. You spend less time changing parts and make fewer mistakes. The cartridge lasts two to three times longer than old ones. Color codes help you pick the right one fast. You save money and get better cuts with this part.
Hypertherm Cartridge Advantages:
Makes it easy to store and change parts
Lowers costs when you use your cutter
Lasts longer than old parts
Easy for new users to put together
Makes cuts better and parts last longer
Note: If you use the Hypertherm cartridge, you spend less time fixing things and more time cutting.
You need every part in the powermax 125 consumables kit for the best results. Each part helps your plasma cutter stay safe, work well, and last longer.
You can install or replace powermax 125 consumables by following these steps:
Plug your system into the correct power source and connect an air supply that meets the system’s needs.
Turn on the system. Make sure the SmartSYNC torch and work-lead cable are connected properly.
Attach the work clamp to your table or workpiece. Install the cartridge.
If you need to change the cartridge while the system is off, remove it with a quarter turn counter-clockwise. Install the new cartridge by turning it a quarter turn clockwise until it fits snugly.
If you change the cartridge while the system is on, move the torch-lock switch to the yellow position. Check that the torch will not fire, then follow the same steps as above.
Tip: Always check for proper alignment and cleanliness when assembling the torch. This helps prevent torch failure and keeps your cuts clean.
You can avoid common mistakes and get better results by following these tips:
| Common Issue | How to Avoid It |
|---|---|
| Changing consumables too often | Check for wear before replacing parts. Save money by using parts fully. |
| Using the wrong parts or settings | Follow the manual to pick the right consumables and settings for each job. |
| Piercing too low | Keep the correct standoff distance to protect the nozzle and get clean cuts. |
| Cutting too fast or too slow | Adjust your speed to avoid rough edges and extra dross. |
| Crashing the torch | Use proper height control to prevent damage to the torch. |
If you notice the electrode and nozzle wearing out quickly, check the coolant flow and air quality. Problems like double arcing or deep pits in the electrode often mean you need to adjust gas flow or torch distance.
You can make your powermax 125 consumables last longer with simple maintenance. Keep your air supply dry and clean. Moisture in the air can cause parts to wear out faster. Adjust the torch height before each cut to prevent damage to the nozzle. Regular cleaning and checking for wear help you avoid costly repairs. Many users find that these habits lead to better performance and longer part life.
It is important to know when to change your consumables. Old parts can cause lots of problems. Watch for these signs:
The electrode tip has deep holes or burns in the copper. This can hurt your torch and stop you from cutting.
You notice rough edges, extra dross, or slower cuts. These signs show your consumables are getting old.
The torch makes new sounds or the arc looks different. These changes often mean your cuts are not good.
You spend more time fixing mistakes or doing cuts again. Old consumables waste your time and materials.
Bad cuts can make your project cost more and lower your profits.
Tip: Check your consumables before every job. Change them when you see damage, not just by the calendar.
You might have problems when using your plasma cutter. Here are some common issues and ways to fix them:
Incomplete Cuts
Use the right amperage and consumables for your metal. Check your consumables often to stop this problem.
Excessive Dross
Control your cutting speed, amperage, and standoff space. These steps help you get less dross and cleaner cuts.
Using Consumables Until They Fail
Look at your consumables often. Change them when they look worn, not just after a set time.
Changing Consumables Too Soon
Check each part before you change it. This saves money and stops waste.
Using Incorrect Parameters
Always match your settings and consumables to the metal and thickness you are cutting.
If your cuts look bad, check your consumables first. Many problems start with old or wrong parts.
You can stop many problems by following these best practices:
Do not change consumables too often. Look at nozzles, electrodes, swirl rings, and shields before you change them.
Keep your air supply clean and dry. Wet air can make parts wear out faster.
Set the torch height before every cut. This keeps the nozzle safe and helps you get better cuts.
Use the right consumables and settings for each job. This helps you get good cuts every time.
| Mistake | How to Prevent It |
|---|---|
| Changing parts too soon | Check for wear before replacing |
| Using wrong settings | Match settings to material |
| Poor air quality | Use dry, clean air supply |
Doing these steps helps you get the most from your powermax 125 consumables and keeps your plasma cutter working well.
You will get better plasma cuts if you use the right powermax 125 consumables kit. Check your parts often and put them in the right way. Change old parts fast to keep cuts clean and safe. Here are some good habits:
Look at parts before every job
Put in consumables the right way
Change worn parts as soon as you can
Doing these things helps your machine last longer. You keep your equipment safe and your work looks better.
Check your consumables before you start each job. Replace them if you see damage or they look worn. If your cuts are not good, change the parts. Looking at your consumables often helps you avoid problems. This keeps your plasma cutter working well.
Do not mix genuine and non-genuine consumables. Only use genuine parts for better results. Genuine parts protect your equipment. Non-genuine parts can cause damage or bad cuts.
The Hypertherm cartridge puts many parts together in one piece. It is easy to install and saves you time. You make fewer mistakes when you use it. The cartridge lasts longer and helps you get cleaner cuts.
Check for rough edges or extra dross on your cuts. Look at the nozzle tip for damage. If you see these signs, change the nozzle. Good nozzles help you make smooth and clean cuts.
You do not need special tools to change Powermax 125 consumables. You can take out and put in parts by hand. Always read your manual for safe and correct installation.
