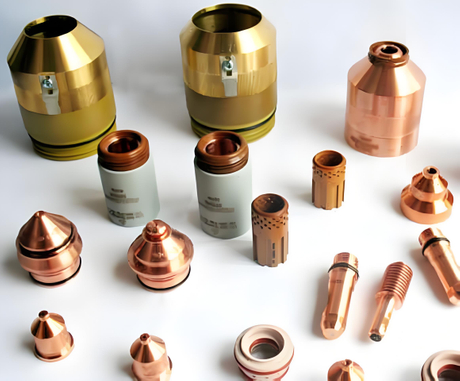

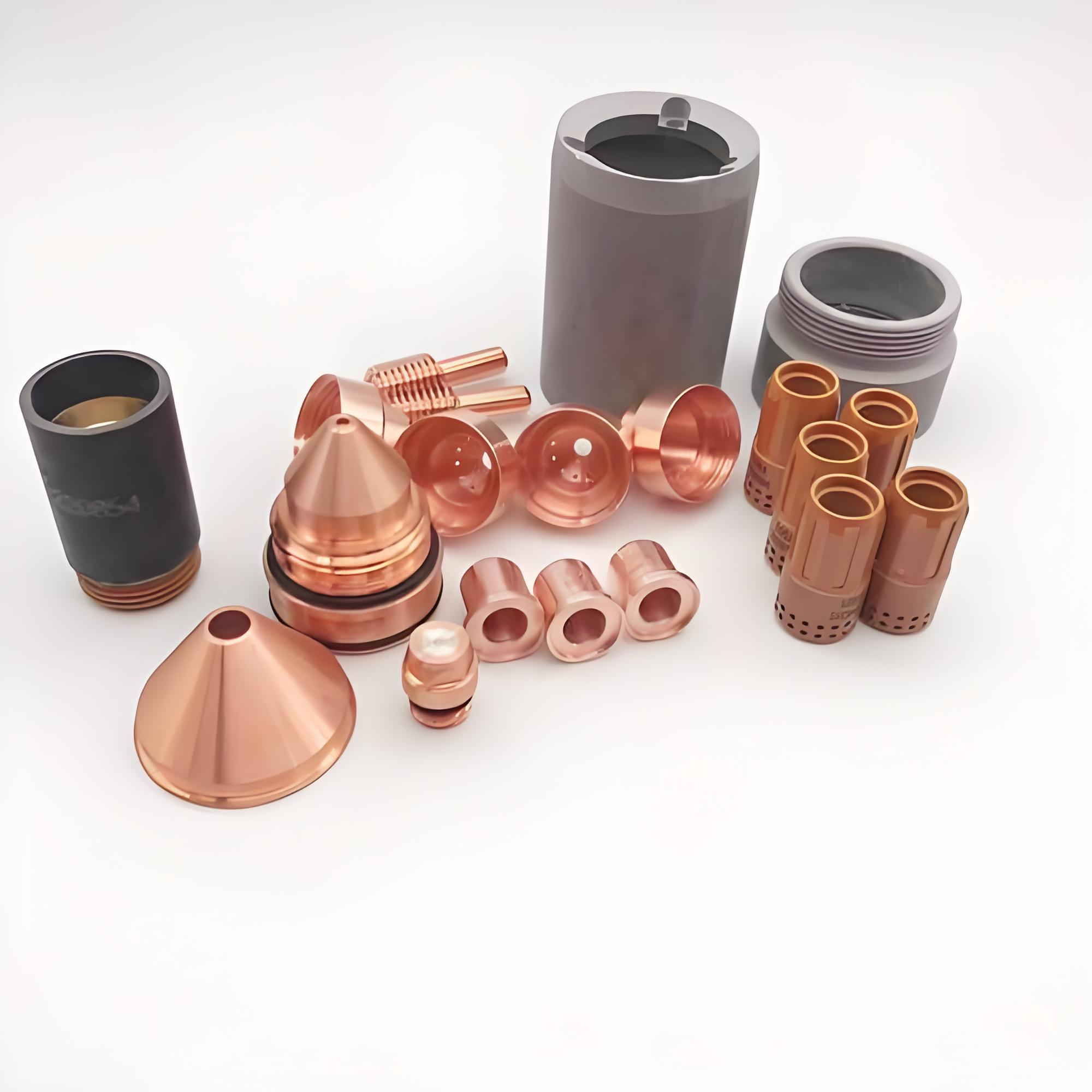

Plasma cutter consumables are a set of components within the plasma cutting torch that gradually wear over time and require periodic replacement. These parts are located where the cutting energy is most concentrated, making their proper maintenance crucial for achieving clean cuts and ensuring the machine's longevity. The primary consumables include the electrode, nozzle, swirl ring, retaining cap, and shield cap. Each component plays a distinct yet interconnected role in creating, stabilizing, and directing the superheated plasma arc that slices through conductive materials with remarkable precision.
The importance of these consumables cannot be overstated. They directly impact cutting quality, operational efficiency, and overall cost-effectiveness of plasma cutting operations. Understanding their functions, maintenance requirements, and selection criteria is essential for anyone involved in metal fabrication, automotive repair, construction, or industrial manufacturing.
The electrode is a critical component typically made of copper with a small insert of hafnium, a metal known for its excellent electrical conductivity and resistance to high temperatures. Its primary function is to receive electrical current from the cathode block inside the torch and focus this charge through its tip, initiating the plasma arc that transfers to the workpiece.
Electrodes have a limited lifespan and typically require replacement after 1-2 hours of continuous use. The hafnium insert gradually erodes during the cutting process, and experts recommend replacement when the pit depth reaches approximately 1-1.6mm. Using worn electrodes can result in poor arc stability, inconsistent cuts, and potential damage to other torch components.
The nozzle is responsible for focusing and directing both the plasma arc and the surrounding gas to create clean, precise cuts. Nozzles come in various sizes and configurations designed for specific applications:
Smaller openings provide better gas direction for fine, detailed work
Larger openings are used for gouging operations
Specialized designs like drag shields allow the torch to rest directly on the workpiece
Nozzles typically last 1-3 hours of continuous use and exhibit visible wear patterns. As the nozzle deteriorates, the orifice becomes larger, producing a wider plasma arc that results in a broader cut (kerf) and diminished precision. Regular inspection is necessary to maintain cut quality.
The swirl ring, often made from ceramic or specialized plastics, serves the crucial function of spinning the plasma gas in a vortex pattern. This spinning action has two primary benefits:
Gyroscopic stabilization of the plasma arc, similar to how rifling stabilizes a bullet
Improved arc focus with reduced tendency for deflection
The swirl ring also provides insulation between the nozzle and electrode, preventing electrical interference that could compromise cut quality. Different manufacturers may design swirl rings for specific rotational directions (clockwise or counter-clockwise) to optimize performance for their systems.
The shield cap (also called shield cup) acts as a protective barrier for the internal components of the torch, deflecting sparks and molten metal debris generated during the cutting process. By taking the brunt of this fallout, the shield cap minimizes wear on other components and extends their operational life.
Shield caps typically offer the longest lifespan among consumables, lasting up to 5 hours of continuous use. However, they require regular cleaning to remove accumulated slag (resolidified molten metal) that can interfere with proper gas flow and arc stability.
The retaining cap serves as the structural component that holds all the consumable parts together in proper alignment. Despite not directly participating in arc creation, it experiences significant thermal stress due to its proximity to the extreme temperatures of the cutting process (reaching up to 30,000°C).
A properly functioning retaining cap ensures consistent gas flow patterns and maintains precise component alignment, both essential for achieving repeatable cut quality. Like other consumables, it degrades over time and requires periodic replacement.
Several variables influence how quickly plasma cutting consumables wear out and how they perform:
Amperage Settings: Higher amperage levels accelerate consumable wear but are necessary for cutting thicker materials
Material Type and Thickness: Different materials and thicknesses require specific consumable types and cutting parameters
Cutting Speed: Operating either too slowly or too rapidly can cause premature consumable failure
Gas Selection and Purity: Proper gas selection and contamination-free delivery systems are critical for consumable longevity
Operator Technique: Proper torch height, perpendicularity, and starting procedures significantly impact consumable life
Proper maintenance practices can extend consumable life and maintain cutting quality:
Regular Inspection: Visually inspect consumables before each use for signs of wear, damage, or contamination
Proper Cleaning: Gently clean components with a soft brush to remove debris; use appropriate cleaning solutions for stubborn deposits
Correct Installation: Ensure all components are properly seated and aligned according to manufacturer specifications
Timely Replacement: Develop a replacement schedule based on documented hours of use rather than waiting for obvious performance degradation
Optimal Settings: Always operate within recommended parameters for amperage, gas pressure, and cutting speed
Choosing the right consumables significantly impacts cutting results and operating costs:
Compatibility: Ensure consumables match your specific plasma cutter model and torch type
Quality Materials: Look for all-copper electrodes with genuine hafnium inserts and precision-machined nozzles
Application-Specific Design: Select consumables designed for your primary applications (fine detail, thick materials, gouging, etc.)
Supplier Reputation: Purchase from reputable suppliers who provide quality assurance and technical support
Cost vs. Performance Balance: While premium consumables may have higher upfront costs, they often deliver better performance and longer life, reducing cost per hour of operation
The plasma cutting industry continues to evolve with several notable trends in consumable technology:
Integrated Cartridge Systems: Products like the Hypertherm SYNC cartridges combine multiple consumables into single, easy-to-replace units that simplify maintenance and improve consistency
Smart Consumables: Emerging technologies include consumables with built-in sensors that communicate with the plasma system to provide real-time feedback on condition and performance
Advanced Materials: New materials and coatings are being developed to extend consumable life in high-amperage applications
Eco-Conscious Designs: Manufacturers are developing more environmentally friendly options that reduce waste without compromising performance
Plasma cutting consumables represent the essential interface between the power supply and the workpiece, transforming electrical energy into precise thermal cutting capability. Understanding the function, maintenance, and selection criteria for these components is fundamental to achieving optimal cutting performance, minimizing operational costs, and ensuring safety.
By implementing proper maintenance procedures, selecting appropriate quality consumables for specific applications, and staying informed about technological advancements, operators can maximize the efficiency and cost-effectiveness of their plasma cutting operations. The relatively small investment in proper consumable management pays substantial dividends through improved cut quality, reduced downtime, and extended equipment life—making mastery of these components essential for anyone serious about plasma cutting.
