Plasma cutting is a versatile and efficient metal fabrication process used across industries from automotive repair to industrial manufacturing. To maintain optimal performance and cut quality, understanding and managing consumable parts is crucial. These components wear down during operation and require regular inspection and replacement. This guide details the essential plasma cutter consumables, their functions, maintenance tips, and best practices for extending their lifespan.
Core Consumables in a Plasma Cutting System

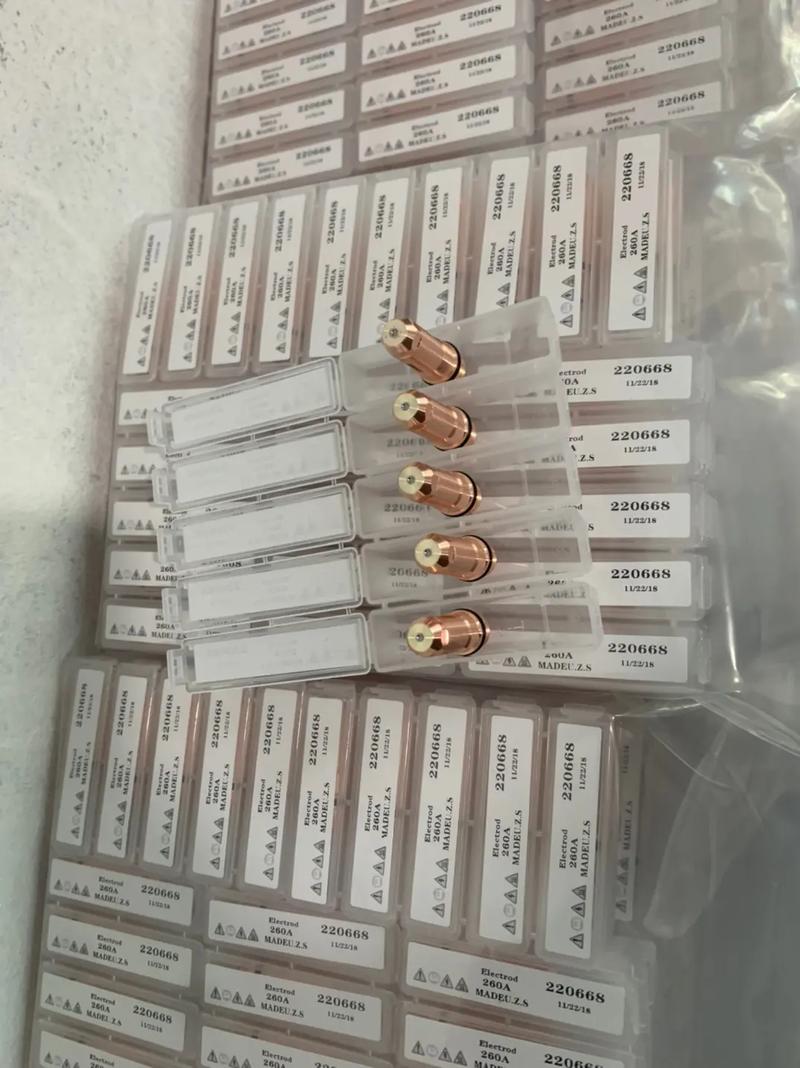

1. Electrode
The electrode (also called the cathode) is a central component responsible for conducting electricity from the power supply to create the plasma arc. It is typically made of copper with an emissive insert—often hafnium or zirconium—at the tip. This insert is critical for arc initiation and stability. Over time, the emissive material erodes, leading to reduced cut quality or failure to ignite the arc. Signs of a worn electrode include a deepened pit in the insert or visible cracking. Always match the electrode type to your cutter’s amperage and the material being cut.
2. Swirl Ring
The swirl ring, usually made of a high-temperature plastic or ceramic, sits between the electrode and nozzle. Its primary role is to control the flow of plasma gas, creating a vortex that stabilizes the arc and centers it within the nozzle. This swirling action also helps constrict the arc, leading to a cleaner, more precise cut. A damaged or worn swirl ring can cause erratic arc behavior, angled cuts, or excessive nozzle wear. Inspect it regularly for cracks or melting, especially after a misfire or "double-arcing" event.
3. Nozzle
The nozzle (or tip) is the most frequently replaced plasma cutter consumables. It focuses the plasma arc into a high-velocity jet and governs cut quality and precision. Nozzles come in various orifice sizes, designed for different amperages and cut types—fine tips for detailed work and high-amperage nozzles for thicker materials. Common wear indicators include a widened or oval-shaped orifice, which degrades cut accuracy and increases slag. Using the correct amperage and maintaining proper pierce height significantly extends nozzle life.
4. Shield Cap
Not all systems have a shield cap, but it is common in hand-held torches. This exterior component protects the nozzle from physical damage, spatter, and short circuits caused by contact with the workpiece. It also helps maintain the correct standoff distance. A damaged shield can lead to accelerated wear on other consumables, so check it for dents or molten metal buildup before each use.
5. Retaining Cap
The retaining cap (often called the shield cup or swirl ring cap) is the outer thread-on component that holds the entire consumable stack—electrode, swirl ring, and nozzle—securely in the torch. It must be tightened correctly: too loose, and air leaks may occur; too tight, and you risk damaging the swirl ring or threads. Use a dedicated wrench to avoid over-torquing.
Additional Consumables and Parts
Water Injector: Used in water-injection torches to constrict the arc further and reduce noise and fumes. It requires periodic replacement if eroded.
O-Rings and Seals: These small rings ensure gas and air flow is directed properly and prevent leaks. They degrade over time due to heat and should be replaced during major service.
Pilot Arc Relay/Contacts: In some systems, these electrical components help establish the pilot arc and can wear out after extensive use.
Amperage and Duty Cycle: Operating at the upper limit of your machine’s amperage or exceeding the duty cycle generates extreme heat, accelerating wear.
Cut Speed and Technique: Moving too slowly overheats the tip, while incorrect standoff distance (especially dragging the shield) causes physical damage.
Air Quality: Moist, oily, or dirty compressed air is a primary killer of consumables. It causes rapid oxidation of the electrode and creates pits in the nozzle. Always use a high-quality air filter/dryer.
Piercing Practices: Piercing thick material without using a pierce delay or at too close a distance blows molten metal back onto the nozzle, shortening its life.
Material Type and Condition: Cutting painted, rusty, or coated metal introduces contaminants into the plasma stream, increasing wear.
Best Practices for Maximizing Consumable Life
Use Quality Gas/Air: Ensure your air compressor and filtration system are adequate. The air should be dry and clean.
Follow Proper Piercing Technique: Use the recommended pierce height and allow the arc to penetrate completely before moving.
Maintain Correct Standoff Distance: Use a drag shield if available, or practice maintaining a consistent 1/8" to 1/16" distance between the workpiece and nozzle.
Inspect Consumables Regularly: Make a habit of checking the electrode and nozzle before starting a job. Replace them as a set for the most consistent performance.
Use the Right Parts for the Job: Don’t use a 40-amp nozzle for a 20-amp job, or vice-versa. Match the consumables to your machine's settings and the material thickness.
Store Consumables Properly: Keep spare parts in a clean, dry container to prevent corrosion or contamination before use.
Recognizing When to Replace Consumables
Ignoring worn consumables leads to poor cut quality and can damage the torch itself. Replace your plasma cutter consumables when you observe:
Poor Cut Quality: Excessive slag, beveled edges, or rough surfaces.
Difficulty Starting the Arc: The cutter struggles to ignite or maintain a pilot arc.
Unusual Noises or Arc Behavior: A sputtering arc or irregular sound from the torch.
Visible Damage: A melted swirl ring, a pitted electrode, or a misshapen nozzle orifice.
Understanding and proactively managing your plasma cutter’s consumables is not just about cost-saving; it is fundamental to achieving clean, efficient, and safe cuts. By investing in quality parts, maintaining good operating practices, and performing regular inspections, you can ensure your plasma cutter remains a reliable and productive tool in your workshop.
