Views: 0 Author: Site Editor Publish Time: 2026-05-11 Origin: Site
You need plasma cutter consumables to keep your torch working well. These parts help control plasma flow. They also affect how good your cuts are. They change the height of your cuts. They help your consumables last longer. If you pick good consumables from trusted brands like Changzhou Forman Welding Equipment Co., Ltd, you make your work safer. You also get better performance.
The right consumables give you smoother cuts. They also help your parts last longer.
Using parts that fit your plasma cutter and settings stops rough cuts. It also helps you avoid dangers.
Checking and cleaning your parts often keeps your cutting safe. It also keeps your work steady.
Good consumables help control amperage. They also help your torch work better.
Pick good quality consumables for smoother cuts and longer use. Check and clean your plasma cutter parts often to keep them safe and working well. Use consumables that fit your plasma cutter to stop damage. Change old consumables quickly to stop rough cuts and keep the plasma arc steady. Keep consumables in a cool, dry place to help them last longer and work better.

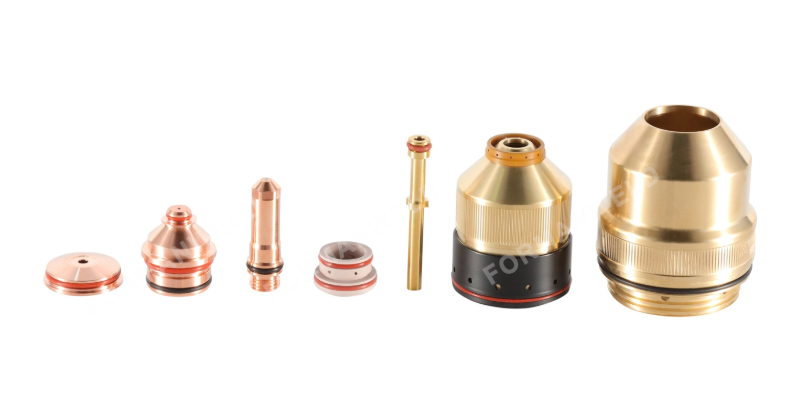

You should know the main types of plasma cutter consumables. This helps you get the best results. Each consumable does something important during cutting. The table below shows how each one helps your cuts and torch last longer:
Consumable Type | Contribution to Cutting Process |
|---|---|
Nozzle | Sends and squeezes the plasma gas onto the metal. This changes how smooth and fast your cut is. |
Retaining Cup | Keeps the nozzle safe and cools torch parts. It also helps control how the gas moves. |
Electrode | Makes the plasma arc and wears down over time. This affects how steady the arc is and how well you cut. |
Swirl Ring | Moves the gas to keep the arc steady. This is needed for a strong plasma jet. |
Retaining Cap | Holds the parts in place so the torch works right. |
The electrode is in the middle of your plasma torch. It makes the plasma arc that cuts metal. Most electrodes use hafnium. Hafnium can take a lot of heat and lasts longer with oxygen. Some electrodes use tungsten or zirconium for special jobs or gases. You should check your electrode often. If it is worn out, the arc will not be steady. Your cuts will not be as good. Change your electrode before it gets too worn.
Hafnium: Handles high heat and lasts longer with oxygen.
Tungsten: Used for special jobs but does not handle heat as well.
Zirconium: Used for some gases and different power levels.
The nozzle shapes and aims the plasma stream. It controls the gas and changes how high and smooth your cut is. When the nozzle wears out, the hole gets bigger. The plasma stream spreads out. This makes your cuts slower and rougher. Use shielded or unshielded consumables depending on your torch and job. Always check your nozzle for damage to keep your cutter working well.
Tip: Taking care of your nozzle gives you cleaner cuts and helps your consumables last longer.
The shield cap keeps the nozzle safe from sparks and hot metal. It also helps control the plasma gas around your cut. You need the right shield cap for your torch and settings. The wrong one can make your cuts worse and hurt other parts.
The retaining cap holds the nozzle and swirl ring in place. It keeps everything lined up inside your torch. The cap also sends coolant to the nozzle. This helps with heat and makes the nozzle last longer. It guides gas to the shield and keeps the arc steady for better cuts.
Holds nozzle and swirl ring for steady cutting.
Sends coolant and gas for better work.
The swirl ring moves the plasma gas around the electrode. It makes the gas spin and keeps the arc steady. This helps heat the metal evenly and makes your cuts faster and smoother. Some swirl rings have two ways to spin the gas. This helps your parts last longer and gives you better edges. Always check your swirl ring for cracks or damage.
Moves gas for a steady arc.
Makes cuts better and helps parts last longer.
If you know what each consumable does, you can pick the right ones. This keeps your torch working well and helps you get good cuts.
You must use consumables that fit your plasma cutter. The right parts help your torch work well. They also keep your cuts neat and smooth. If you use the wrong part, your machine can break. Your cuts might look bad too. Brands like Hypertherm, ESAB, Lincoln, and Kjellberg make their own parts. Always look in your manual for the right numbers and names.
Tip: Match the amperage, material, and thickness to your consumables. This helps you get good results and keeps your cutter safe.
Here are some things to check for compatibility: Retaining caps, swirl rings, and nozzles must fit your torch. Using the right parts keeps your plasma system working well. You can stop delays and keep your work going. Matching parts helps you use your consumables better and stops your machine from breaking.
Forman Weld makes consumables that work with many brands. You do not need to buy a new machine. You can use these parts with what you have now. Here is a quick look at brands that work with Forman Weld:
Notes | |
|---|---|
Hypertherm | No need to buy new equipment |
Kjellberg | Works with your current system |
ESAB | Easy to use with Forman consumables |
Thermal Dynamics | Saves money as an alternative |
You can also find parts for Lincoln, Ajan, and Cebora. This means you can use your plasma cutter and consumables without worry.
The quality of your consumables is very important. Good materials help your plasma arc stay steady. You get clean cuts with less mess. Good materials also let you cut faster and get smoother edges. This means you spend less time cleaning up after cutting.
Here are some reasons to pick high-quality consumables: Good arc control gives you better cuts. Special nozzle designs let you cut faster and keep your edges smooth. High-quality materials last longer. You do not need to change them as much. Good consumables can handle heat and wear, so they last longer.
Keep your consumables clean. Dirt or metal dust can block the small holes in the swirl ring or retaining cap. This can make your plasma arc uneven and hurt your cut quality.
Forman Weld uses advanced ways to make sure every consumable is high quality. You get good results every time you use your torch.
You can pick between OEM and aftermarket consumables. OEM parts come from the company that made your plasma cutter. These parts fit your machine and meet strict rules. Aftermarket parts come from other companies. Some work well, but others may not fit or last as long.
Here is a table to help you see the differences:
Feature | OEM Consumables | Aftermarket Consumables |
|---|---|---|
Quality Assurance | High quality, made to work well | Quality can change, may not be as good |
Compatibility | Made for certain machines | May not always fit |
Warranty and Support | Often has a warranty from the maker | May have little or no warranty |
Longevity | Made to last longer, fewer changes needed | May need to be changed more often |
Performance | Works best with original equipment | Performance can change, may not be as good |
Safety | Tested for safety | May not be tested for safety |
If you want the best results, pick consumables that meet or beat OEM standards. Forman Weld has high-quality consumables you can trust. These parts help your torch work well and keep your cuts clean.
Note: Always check your plasma cutter’s manual before buying new consumables. This helps you pick the right part for your amperage, material, and settings.
Picking the right consumables helps you get better cuts, longer life, and safer work. You can stop problems by checking compatibility, picking good materials, and knowing the difference between OEM and aftermarket parts. This is one of the main things that affects how long your consumables last and how good your cuts are.
You can tell when plasma cutter consumables need changing by looking for clear signs. Checking your parts helps your torch work well. Look for swirl marks or too much spatter. These signs mean your consumables are getting old. More dross shows the arc is weak. Slow cutting and lots of sparks also show problems.
Sign of Wear | Description |
|---|---|
Swirl marks on the material | Circular marks show old consumables. |
Excessive spatter | Arc is not working right. |
More dross | Extra slag means the arc is weak. |
Poor cutting speed | Slow cuts mean you need new parts. |
Excessive sparks | Too many sparks show the arc is not steady. |
You should also watch for strange arc movement, bad cuts, or deep pits and cracks. Black spots or a bigger nozzle hole mean you need to change the part. Oxide or gouging inside the nozzle shows the consumable is almost done.
Problems with performance often come from old consumables. You might see rough edges or uneven kerfs. These problems make your cuts worse. Checking the nozzle and electrode often helps you keep the right pierce height. It also keeps your plasma cutter working well. More edge bevel and dross build-up mean you should change your parts. Not changing old parts can cause unstable arcs and more scrap. Changing parts on time keeps your work steady and your settings right.
Using old plasma cutter consumables can be dangerous. Checking your plasma cutter often helps you find damage early. Worn parts can cause unsafe situations. Cleaning and changing parts on time helps you stay safe. You should always keep the right pierce height and amperage. Good care protects you and your equipment while cutting.
You can make your plasma consumables last longer if you keep them clean. After you use your torch, wipe the electrode with a soft cloth. This removes dust and dirt. If there is tough dirt, wash the part with mild soap and water. Dry it all the way before using it again. Clean your parts often so nothing blocks the nozzle or swirl ring. This keeps the plasma arc steady and your cuts nice. If you see dirt inside the nozzle, use a small brush to clean it out. Always look for metal dust in your torch after you cut. Clean consumables help you get the right cut height and protect your cutter from harm.
Tip: If your hands are clean, you will not get oil on the electrodes or other parts.
Storing your consumables the right way keeps them safe from water and dust. Put electrodes and nozzles in a cool, dry spot. The best temperature is between 65 and 75 degrees. Keep the humidity under 50 percent. Use sealed boxes with silica gel to keep out water. Always put parts back in their own box after you open them. This keeps them safe when you move or store them. If you keep things neat, you can find the right part fast. This also stops scratches and dents. Close the box again after you take out what you need. This keeps the rest of your parts clean and ready.
Keep parts away from cutting fluids and dust.
Use foam or divided boxes to keep everything neat.
Be careful when you touch each consumable so you do not break it. Before you put in a part, check for cracks, burns, or wear. Put the nozzle, electrode, and swirl ring in just like the manual says. This makes sure they fit right and your torch works well. Use the right coolant and match your settings to the job. If your cuts start to look bad, change the old part soon. Keep extra consumables close so you can swap them fast and keep working. Doing these things helps your plasma consumables last longer and keeps your cutter working great.
Note: If you handle parts well and check them often, you can stop sudden problems and make your plasma consumables last longer.
Mistakes can happen when you use plasma consumables. If you know what to look for, you can keep your plasma cutter safe and working well.
Sometimes, parts are put in the wrong way. If the nozzle and electrode are not lined up, the torch will not work right. Dirty parts can block the plasma flow. Always check that each part fits and is clean before you start. Follow your manual for the right order and placement. If you build the torch wrong, your cuts will be bad and your machine can break.
Here is a table showing common mistakes and how to stop them:
Mistake | Prevention |
|---|---|
Using consumables until they fail | Check parts often and track their life. Change before they break. |
Changing consumables too soon | Look for wear. Only change when needed. |
Using wrong parameters and parts | Use the manual to match settings and parts to material and thickness. |
Assembling torch incorrectly | Line up and clean parts when you build the torch. |
Neglecting routine maintenance | Clean torch threads and check for dirt. |
Not checking gas and coolant flow | Check gas and coolant levels every day. |
You must use the right consumables for your plasma cutter. If you use parts from another brand or wrong amperage, your machine can get damaged. For example, a 100-amp plasma cutter needs 100-amp rated consumables. Using parts that do not match can cause bad cuts, overheating, and fast wear. You might see rough edges or the plasma arc may not work with the metal. Always check your settings and match the nozzle and electrode to your torch.
Some problems from using the wrong parts are:
Consumables break too soon.
Cuts are rough and edges look bad.
Machine gets too hot and does not last long.
If you skip maintenance, your plasma system will not last as long. Cleaning often keeps the torch and consumables working well. You should clean threads, check for dirt, and look at the nozzle often. Skipping these steps can cause bad cuts, machine problems, and fewer cuts before you need new parts. Keeping parts clean and checking coolant and gas flow helps you get better results and makes your equipment last longer.
Tip: Make a checklist for daily and weekly maintenance. This helps you remember each step and keeps your plasma cutter working great.
You can avoid these mistakes by following your manual, checking parts often, and keeping everything clean. This helps you get the best cuts and keeps your torch safe.
You get better plasma cutting when you know what each part does. The swirl ring, electrode, nozzle, retaining cap, and shield cap all help focus the plasma. They also help cool your torch and keep it safe. Check your parts often and change them when needed. This stops your machine from breaking. It also keeps the amperage right and the plasma arc steady.
Look for worn parts before you start.
Change any part that is damaged or if cuts look worse.
Pick the right amperage and parts for your cutter.
Always wear PPE and keep your area safe.
If you are not sure which parts to use or need help, ask trusted suppliers like Forman Weld.
You should check your consumables after each use. Replace them when you see wear, damage, or a drop in cut quality. Regular checks help you avoid sudden problems.
Worn consumables can cause rough cuts, more sparks, and even damage your torch. You may also see more dross and uneven edges. Always replace worn parts quickly.
You should not mix brands unless the parts are marked as compatible. Using the wrong consumables can damage your plasma cutter and reduce performance. Always check your manual or ask your supplier.
Store unused consumables in a dry, cool place. Use sealed boxes or containers to keep out dust and moisture. This helps your parts last longer and work better.
Cut quality changes when consumables wear out, get dirty, or are installed wrong. Always clean and check your parts before each job. This keeps your cuts smooth and your torch safe.
