D28H34
Red copper
28mm
1.2-5.0
| Quantity: | |
|---|---|

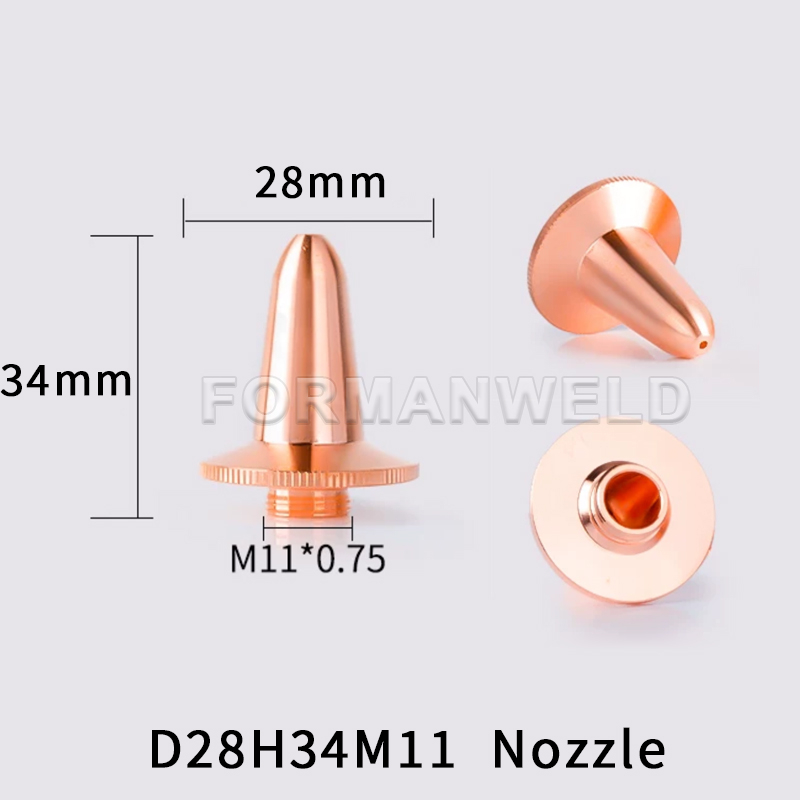

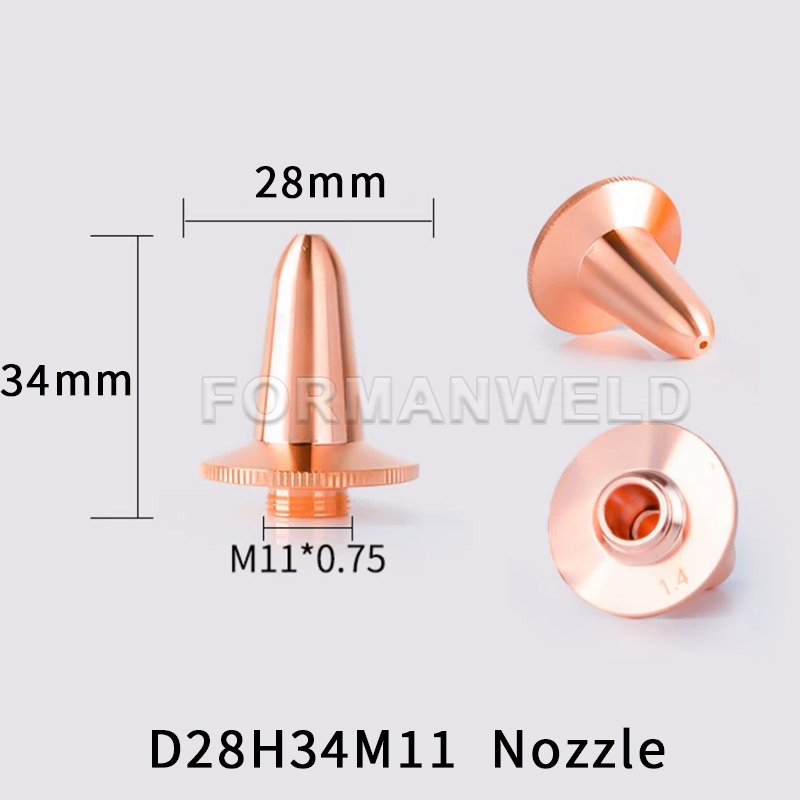

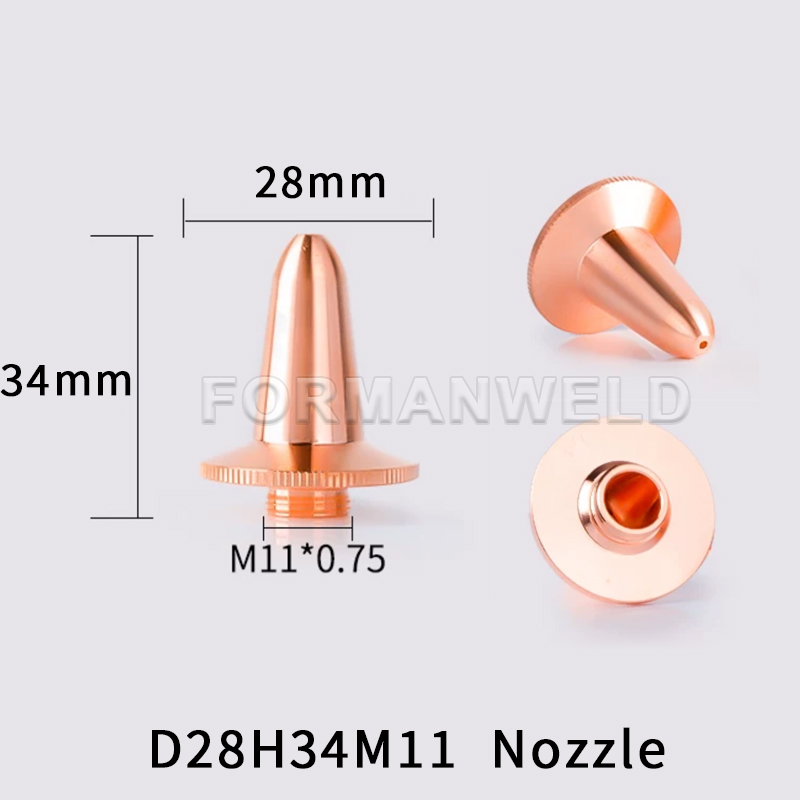

High Quality Bevel Nozzles D28H34M11 For BOCI Laser Head BLT4 BLT6
Quick Details
| Part Number | Caliber (mm) | DIA(mm) | Height(mm) | Thread(mm) |
| S1.2-F (DY.Z.E0012AA) | Single 1.2 | 28 | 34 | M11 |
| S1.4-F(DY.Z.E0002AA) | Single 1.4 | 28 | 34 | M11 |
| S1.6-F(DY.Z.E0014AA) | Single 1.6 | 28 | 34 | M11 |
| S1.8-F(DY.Z.E0016AA) | Single 1.8 | 28 | 34 | M11 |
| S2.0-F(DY.Z.E0006AA) | Single 2.0 | 28 | 34 | M11 |
| S2.5-F(DY.Z.E0034AA) | Single 2.5 | 28 | 34 | M11 |
| S3.0-F(DY.Z.E0008AA) | Single 3.0 | 28 | 34 | M11 |
| S4.0-F(DY.Z.E0009AA) | Single 4.0 | 28 | 34 | M11 |
| S5.0-F(DY.Z.E0010AA) | Single 5.0 | 28 | 34 | M11 |
| D1.2-F(DY.Z.E0013AA) | Double 1.2 | 28 | 34 | M11 |
| D1.4-F(DY.Z.E0004AA) | Double 1.4 | 28 | 34 | M11 |
| D1.6-F(DY.Z.E0015AA) | Double 1.6 | 28 | 34 | M11 |
| D1.8-F(DY.Z.E0017AA) | Double 1.8 | 28 | 34 | M11 |
| D2.0-F(DY.Z.E0007AA) | Double 2.0 | 28 | 34 | M11 |

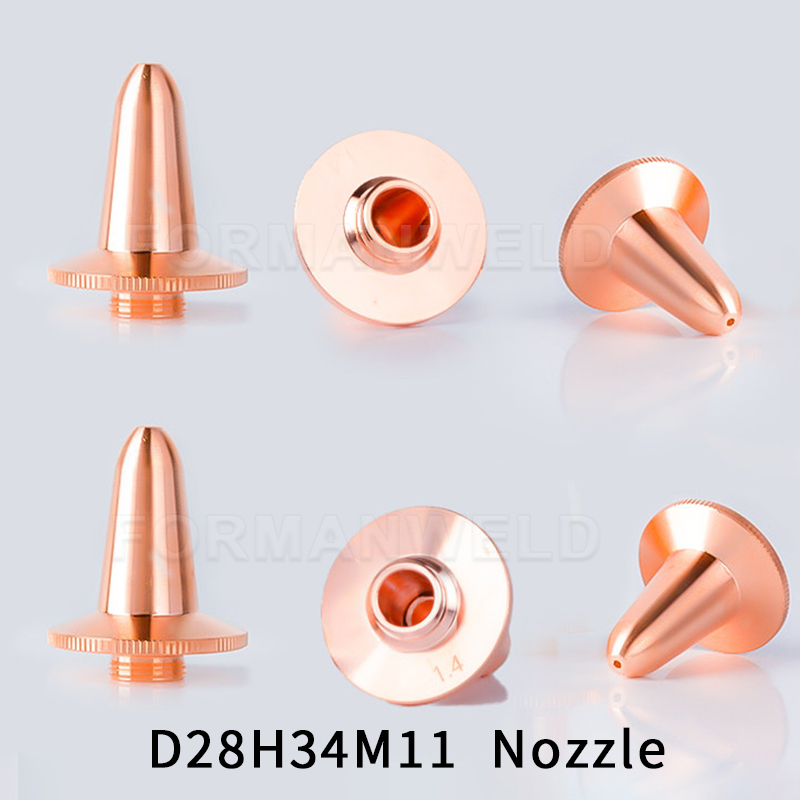

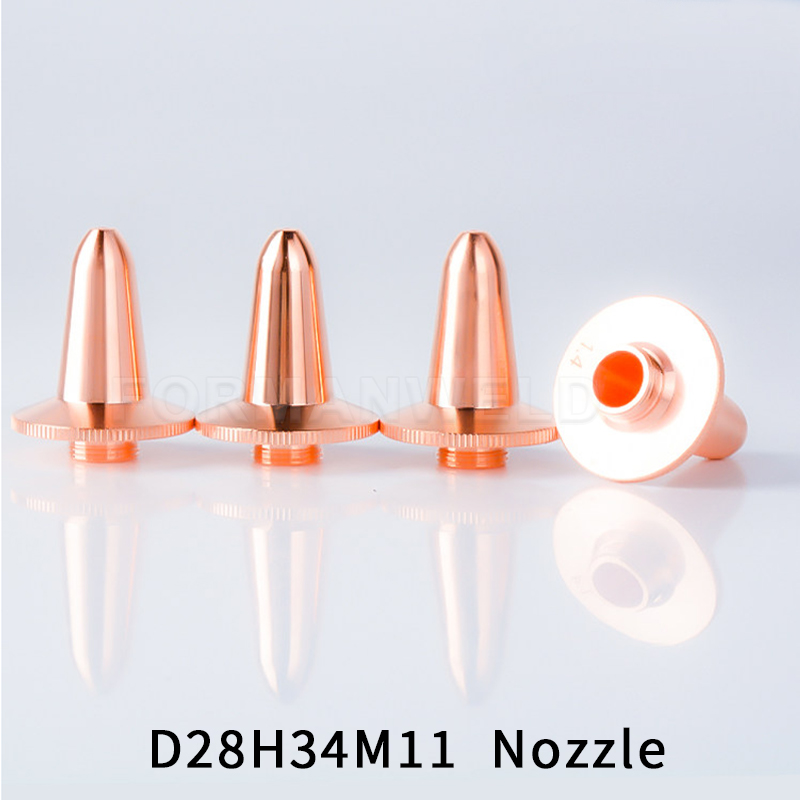

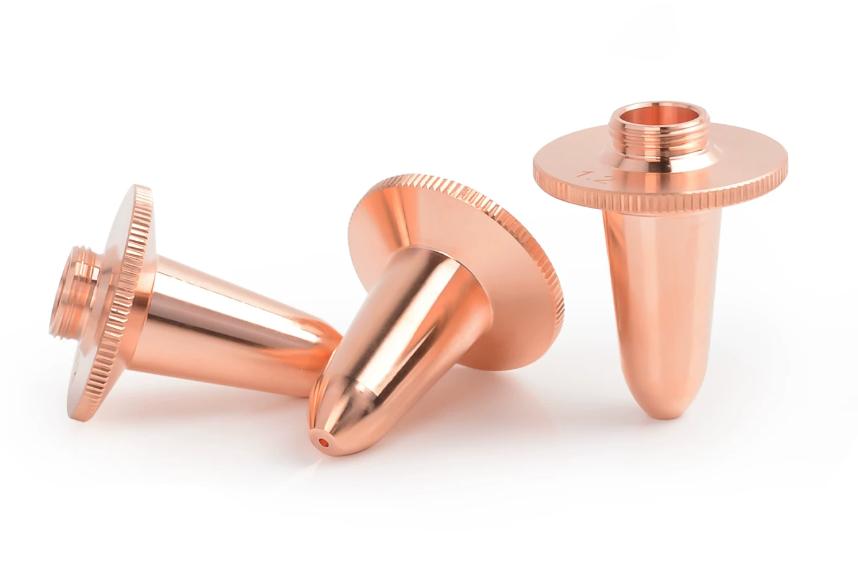

Real Shot
