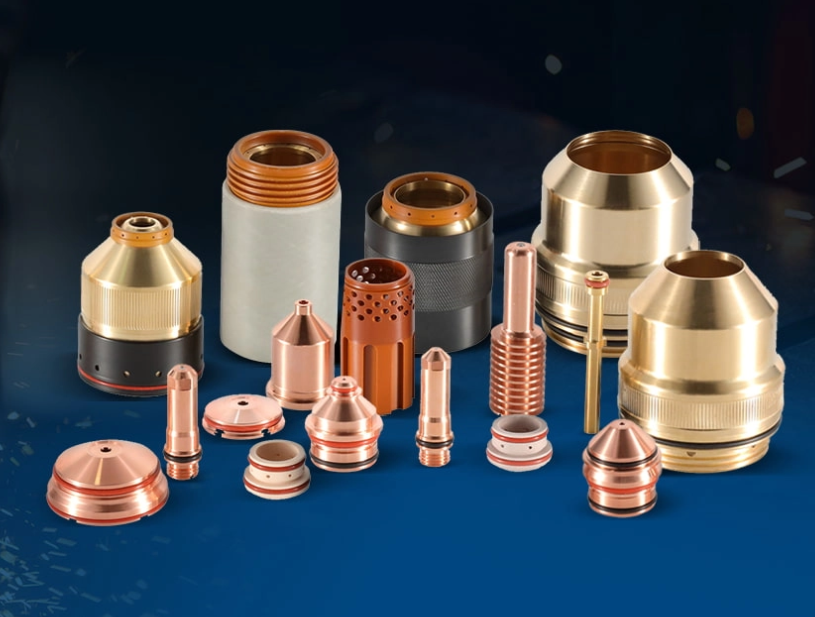

Plasma cutting is a highly efficient metal fabrication process that relies on a focused plasma arc to cut through electrically conductive materials. At the heart of this system are the plasma cutter consumables—components that gradually wear down with use. These consumables include the electrode, nozzle, swirl ring, and sometimes shield cap. Recognizing when these parts need replacement is crucial for maintaining cut quality, operational efficiency, and safety. This guide provides detailed information on identifying worn-out consumables before they compromise your work.
Key Consumables and Their Functions
Understanding the role of each consumable helps in diagnosing wear-related issues:
Electrode: Conducts electrical current to generate the plasma arc, featuring a hafnium insert that erodes with each arc start.
Nozzle: Focuses the plasma arc through a precise orifice, creating a clean, consistent cut.
Swirl Ring: Controls gas flow around the electrode to stabilize and concentrate the plasma arc.
Shield Cap: Protects the nozzle from molten metal splash and physical damage.
These components work together to create the ideal conditions for plasma cutting. When one part wears out, it affects the entire system's performance.
Visual Inspection: The First Indicator of Wear
Electrode Inspection
The electrode typically shows the most visible signs of wear. Examine the hafnium emitter at the center:
Early Wear: Approximately 1.2mm of erosion begins to affect cut quality.
Replacement Threshold: When the erosion reaches 1.5-2mm, immediate replacement is necessary .
Other Visual Clues: Look for cracking, pitting, or oxidation on the emitter surface. Significant discoloration or a concave shape indicates the electrode can no longer focus the arc properly.
Nozzle Inspection
A worn nozzle directly impacts cut quality. Check for:
Orifice Deformation: The central hole should be perfectly circular. An oval or enlarged opening (beyond 20% of original size) indicates excessive wear.
Surface Damage: Look for dents, spatter accumulation, or burn marks on the nozzle surface. Contamination here disrupts plasma flow.
Carbon Deposits: Blackened areas suggest overheating and improper gas flow.
Swirl Ring and Shield Cap Inspection
Swirl Ring: Check for cracks, burns, or blocked gas channels .
Shield Cap: Look for cracks, warping, or excessive spatter buildup that could interfere with gas flow.
Table: Visual Inspection Checklist for Plasma Consumables
Component
Early Wear Signs
Replacement Indicators
Electrode
1.2mm hafnium erosion
1.5-2mm erosion, cracking
Nozzle
Minor ovality, slight discoloration
20% orifice enlargement, burns
Swirl Ring
Discoloration
Cracks, blocked channels
Shield Cap
Minor spatter
Cracks, warping, heavy spatter
Performance Indicators of Worn Consumables
Cut Quality Assessment
Monitor changes in cut quality as primary indicators of consumable condition:
Edge Quality: Increased dross accumulation (resolidified metal on the cut edge) suggests improper arc focus. Excessive bevel on cuts indicates uneven heating.
Cut Consistency: Wavy lines or uneven kerf width point to an unstable plasma arc.
Piercing Problems: Difficulty initiating pierces or excessive sparking during piercing often means worn electrodes.
Operational Symptoms
Arc Ignition Issues: Difficulty starting the arc or frequent arc outages indicate electrode or nozzle problems.
Unusual Arc Behavior: A wider, less focused arc or erratic arc stability suggests nozzle wear.
Color Changes: A bluish arc tint may signal excessive wear .
Speed Reduction: The need to slow down cutting speed to achieve penetration indicates reduced cutting power.
Maintenance Practices to Extend Consumable Life
Proper Installation and Alignment
Clean Handling: Always install consumables with clean hands in a dust-free environment.
Correct Sequencing: Assemble components in the proper order according to your torch manual.
Proper Tightening: Use recommended torque—overtightening causes premature wear.
Operating Conditions Optimization
Adequate Cooling: Ensure cooling systems function properly. Check water temperature and pressure regularly, as overheating rapidly degrades consumables.
Gas Quality: Use dry, clean air or gas. Moisture contamination erodes hafnium emitters quickly.
Current Settings: Avoid exceeding nozzle ratings—operate at approximately 95% of rated capacity.
Regular Maintenance Schedule
Pre-Cut Inspection: Briefly check consumables before each use .
Cleaning Routine: Gently clean components with appropriate cleaners to remove debris.
System Checks: Regularly verify gas flow rates and cooling system operation.
When to Replace Specific Consumables
Electrode Replacement Triggers
Replace electrodes when:
Hafnium erosion reaches 1.5mm depth
You experience difficulty maintaining arc
Cut quality deteriorates with increased dross
Nozzle Replacement Triggers
Replace nozzles when:
Orifice appears oval or enlarged by 20%
Nozzle shows visible burn marks or cracking
Cut quality declines regardless of electrode condition
Swirl Ring and Shield Cap Replacement
Swirl Ring: Replace when you notice erratic arc behavior or visible damage.
Shield Cap: Replace when cracked or excessively spattered.
Recognizing when plasma cutter consumables need replacement is both an art and a science. By combining regular visual inspections with attention to performance changes, operators can maintain optimal cutting quality and efficiency while reducing downtime. Remember that preventive replacement is more cost-effective than dealing with the consequences of failed consumables, which can include torch damage and poor workpiece quality. Establish a regular maintenance schedule and keep spare consumables on hand to ensure uninterrupted operation. With proper care and attention, you can maximize the value of your plasma cutting system while producing consistent, high-quality cuts .
