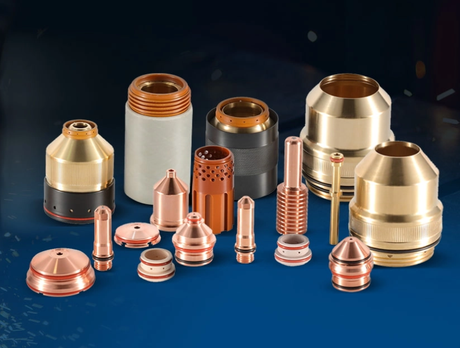

Plasma cutter consumables are the collection of parts within the cutting torch that are subject to wear and tear during the cutting process. As the name implies, they are "consumed" over time and must be regularly inspected and replaced to keep the system performing at its best. Unlike the solid-state electronics or the compressor in an air dryer, these parts are in direct contact with the superheated plasma arc and are degraded by it. A typical set of consumables for a standard hand torch includes the electrode, nozzle, swirl ring, retaining cap, and shield cap. Each plays a distinct and vital role in the plasma arc initiation and stabilization process.
To appreciate the importance of consumables, one must understand the role each part plays in creating a clean, stable cut.
1. The Electrode: The Source of the Arc
The electrode is the primary negative conductor (-) and the source of the pilot arc that initiates the cutting process. It is typically made of copper for its excellent electrical conductivity, but its tip contains a critical insert made of a high-emissivity material, most commonly hafnium or zirconium.
Function: When the torch trigger is pressed, a high-frequency pilot arc is generated between the electrode and the nozzle. This arc ionizes the gas passing through the torch, creating a conductive plasma channel. Once this plasma jet contacts the grounded workpiece (the positive, +), the main cutting arc transfers from the electrode to the material.
Wear and Failure: The hafnium insert erodes with each start and during cutting. Eventually, the insert will wear away completely, exposing the underlying copper. If used beyond this point, the copper will melt rapidly, destroying the electrode and potentially damaging the torch body. A worn electrode is the most common cause of poor arc starts.
2. The Nozzle (or Tip): Focusing the Plasma Jet
The nozzle, often called the tip, is perhaps the most visible consumable. It is also made of copper and features a precisely engineered constricting orifice in its center.
Function: The nozzle's primary job is to focus and constrict the plasma arc into a tight, coherent, and high-velocity stream. This concentration is what gives plasma cutting its precision and allows for narrow kerf (cut width). The size of the orifice directly determines the amperage and characteristics of the cut—a smaller orifice is for lower amperage and finer cuts, while a larger orifice is for higher amperage and thicker materials.
Wear and Failure: The nozzle orifice erodes from the intense heat and kinetic energy of the plasma flow. Normal wear will gradually enlarge the orifice, leading to a wider, less focused arc, which results in a wider kerf, more dross (residual molten material), and a beveled edge on the cut. Catastrophic failure can occur from "double-arcing," where the arc touches both the electrode and the nozzle interior, often melting a hole in the nozzle. This is frequently caused by the nozzle touching the workpiece or excessive pierce height.
3. The Swirl Ring (Baffle): Stabilizing the Arc
This often-overlooked plastic or ceramic component sits between the electrode and the nozzle. It has angled holes or channels that cause the incoming gas to spin rapidly.
Function: The swirling action created by the swirl ring is crucial for arc stabilization. This vortex effect spins the plasma arc, helping to center and constrict it within the nozzle orifice. This leads to a cleaner, more stable cut and extends the life of the electrode and nozzle by ensuring even wear. It also creates a vortex that helps protect the nozzle from splattered metal during piercing.
Wear and Failure: While not subject to the same level of thermal abuse as the electrode and nozzle, the swirl ring can degrade. It can become cracked or melted from extreme heat, especially if a failure occurs in the adjacent parts. Damaged channels will disrupt the gas flow, leading to an unstable, erratic arc and poor cut quality.
4. The Retaining Cap: Holding It All Together
The retaining cap (or shield cup on some systems) is the outer threaded cap that screws onto the torch body and physically holds the stack of consumables—electrode, swirl ring, and nozzle—securely in place.
Function: Its primary role is mechanical, ensuring all internal components are aligned correctly and have proper electrical contact. A properly torqued retaining cap also ensures gas seals are tight, preventing air leaks that would disrupt plasma gas flow.
Wear and Failure: The main failure points are damaged threads, which prevent proper seating, and oxidation from heat, which can make the cap difficult to remove. O-rings inside the cap can also degrade and need replacement to maintain a gas-tight seal.
5. The Shield: Protecting the Torch
The shield is an additional protective cup that attaches to the outside of the retaining cap. It is standard on torches designed for mechanized cutting and is common on higher-end hand torches.
Function: The shield protects the more expensive nozzle from physical damage caused by contact with the workpiece or splattered molten metal. It also helps maintain the correct standoff (tip-to-work) distance and can have secondary gas holes that blow shielding gas across the cut face, improving cut quality and bevel control on some systems.
Wear and Failure: Shields are sacrificial by design. They will show signs of burning, spatter buildup, and physical deformation. A heavily damaged shield should be replaced to ensure it doesn't inadvertently cause a short circuit or disrupt gas flow.
The state of your consumables is the single greatest factor influencing cut quality, second only to the operator's skill.
Worn Electrode: Causes difficulty starting the arc, frequent arc outages, and an unstable cut.
Worn Nozzle: Results in a wide, unfocused arc leading to excessive top spatter, a pronounced bevel angle, increased dross, and a rough cut surface.
Damaged Swirl Ring: Creates an erratic, swirling arc that can cause kerfs to wander, producing wavy or crooked cuts.
Improper Assembly: If components are not seated correctly, it can lead to gas leaks, poor electrical contact, and immediate failure due to internal arcing.
Replacing consumables is a cost of doing business, but that cost can be managed effectively through proper operation and maintenance.
Use Clean, Dry Air: Moisture and oil in the compressed air are the archenemies of plasma consumables. They contaminate the parts, cause rapid oxidation, and lead to erratic arcing. A high-quality air dryer and filter are non-negotiable investments.
Maintain Correct Standoff Distance: Never drag the nozzle on the metal. Use a drag shield if available, or maintain the manufacturer's recommended pierce and cut height (typically 1/8" or 3-4 mm for hand cutting).
Use the Right Amperage and consumables for the Job: Don't use a 40-amp nozzle to cut at 20 amps, and never exceed the rated amperage of a consumable set. Match the consumables and power setting to the material thickness.
Perform Proper Piercing: Pierce at a height 1.5 to 2 times the standard cut height to avoid molten blowback from damaging the nozzle and shield.
Inspect and Rotate: Regularly shut down the system, disassemble the torch, and inspect all consumables. Some nozzles can be rotated 90 degrees to utilize a fresh part of the orifice, extending life slightly.
Use High-Quality Parts: Genuine OEM (Original Equipment Manufacturer) consumables are engineered to precise tolerances for specific plasma systems. While cheaper generic parts are available, they often lead to poorer cut quality, shorter life, and can even void your machine's warranty.
Plasma cutter consumables are far more than simple replaceable parts; they are a finely tuned system that dictates the performance, quality, and economy of the entire cutting process. By investing time in understanding the function of the electrode, nozzle, swirl ring, retaining cap, and shield, operators can transition from simply running a machine to truly mastering their craft. Through vigilant inspection, adherence to best practices, and the use of quality components, the lifespan of these essential parts can be maximized, ensuring every cut is clean, precise, and cost-effective.
