You can see the most common Hypertherm replacement parts numbers below. These are for electrodes, nozzles, and shields.
220842: Hypertherm Electrodes (FineCut) 5-Pack—good for thin sheet metal and accurate cuts.
Match your plasma cutter model, like Powermax, MAX, or HPR, to the right Hypertherm replacement parts number. This helps your machine work better and saves money. Certified, high-quality consumables keep the plasma arc steady and cut down on dross. Forman is a trusted maker. They check parts carefully for strong compatibility and quality. Use this guide to order fast and avoid mistakes.
Always check your plasma cutter model before picking a Hypertherm part number. This helps your machine work well and stops expensive errors.
Using real Hypertherm replacement parts makes your cuts better and helps your plasma cutter last longer. Good parts give you nicer cuts and less time fixing your machine.
Look at your consumables often to see if they are worn or broken. Change electrodes, nozzles, and shields when you see damage to keep your cutter working well.
Buy parts from trusted sellers to make sure they are real and good quality. This keeps your machine safe and helps you get the right parts.
Write down part numbers so you can order them easily next time. This easy step saves time and helps you not make mistakes when buying new parts.

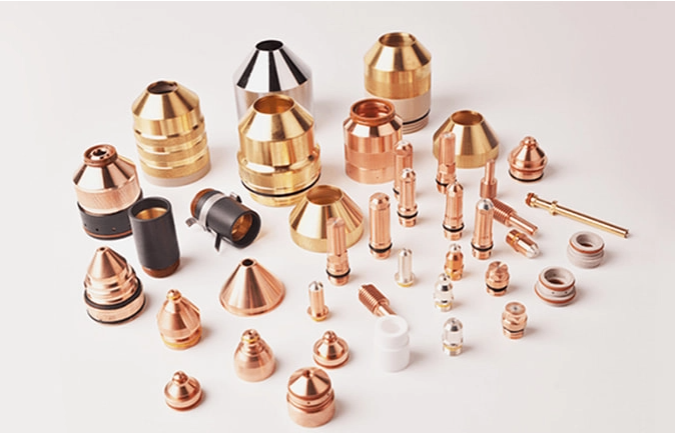

Hypertherm Replacement Parts have many consumables. Each part helps with plasma cutting. Here are the most common consumables you will use:
Electrodes: These parts get electrical current. They make the arc that cuts metal. Most electrodes use copper and hafnium. This makes them work well.
Nozzles: Nozzles aim the plasma arc and gas. This helps you cut clean and neat. You can pick different nozzle sizes for each job.
Shields: Shields keep the torch safe from sparks and hot metal. This protects your equipment and helps it last longer.
Retaining Caps: These hold the nozzle and electrode tight.
Swirl Rings: Swirl rings move gas around the arc.
Deflectors and Kits: Deflectors give extra safety. Kits have all the parts you need in one box.
Tip: Using the right consumables gives you better cuts. It also helps your plasma cutter last longer.
Choosing Hypertherm Replacement Parts helps your plasma cutter work well. These parts fit models like Powermax, MAX, and HPR series. You can see how consumables match these systems in the table below:
Consumable Type | Description | Powermax Compatible |
|---|---|---|
FineCut consumables | For fine, detailed cuts with less dross | Yes |
FlushCut consumables | For cutting close to the base material | Yes |
Gouging consumables | For removing metal and shaping edges | Yes |
HyAccess extended | For hard-to-reach cutting or gouging | Yes |
CopperPlus electrode | Long life, best for cutting metal up to 12 mm (1/2″) thick | Yes |
Certified quality means each part meets strict rules. You get good performance and your equipment lasts longer. Using the right Hypertherm Replacement Parts stops problems. Your plasma cutter keeps working well.
Powermax series electrodes fit many plasma cutters. Each model needs its own electrode part number. This helps your machine work well and last longer.
Powermax Model | Electrode Part Number | Notes |
|---|---|---|
Powermax30 | 220478 | Standard electrode |
Powermax45 | 220669 | FineCut available |
Powermax65 | 220842 | Long-life design |
Powermax85 | 220842 | Same as PMX65 |
Powermax105 | 220842 | High amperage |
Powermax125 | 220971 | Heavy-duty |
Tip: Look in your torch manual for the right electrode part number. Using the correct part keeps your cuts smooth and your torch safe.
MAX series plasma cutters use different electrodes. Match the part number to your model. This helps your machine work well every time.
MAX40: 020424
MAX100: 020425
MAX200: 020426
Each MAX model uses its own electrode. This makes ordering the right Hypertherm Replacement Parts simple.
HPR series cutters are for tough jobs. These machines need strong electrodes. Here are the main part numbers:
HPR Model | Electrode Part Number | Application |
|---|---|---|
HPR130 | 220665 | Standard cutting |
HPR260 | 220665 | High power |
HPR400XD | 220665 | Extended life |
These electrodes work for mild steel and stainless steel. Always check the amperage and material before you buy.
Note: If you see damage, like pits or rough spots, change the electrode right away. This keeps your plasma cutter working well.
There are many nozzle choices for Powermax series. Each nozzle fits a certain model and job. The table shows a common nozzle part number and its details:
Part Number | Type | Series | Compatible Models | Quantity per Order |
|---|---|---|---|---|
220819 | 65A | Duramax®, Duramax® LK/RT | Powermax® 65/85/105/HRT/HRTs/MRT | Pack of 5 pieces |
Check your plasma cutter manual to find the right nozzle. Using the correct nozzle gives you clean cuts. It also keeps your torch safe.
MAX series plasma cutters use different nozzle numbers. Pick the nozzle that fits your machine. Here are some common MAX series nozzle numbers:
MAX40: 020423
MAX100: 020422
MAX200: 020421
Each nozzle works best for its own model. Choosing the right nozzle helps you cut better.
HPR series cutters are made for tough jobs. You need strong nozzles for these machines. Here are main HPR series nozzle numbers:
HPR130: 220816
HPR260: 220816
HPR400XD: 220816
These nozzles help you cut thick steel and stainless steel. Always check the amperage and material before you order.
Bigger cutting nozzles have a bigger hole for the arc. If you turn down the amperage on a big nozzle, the arc gets softer. This makes the cut edge curved and creates more dross. Using a smaller nozzle at its max amperage gives you lower power but high energy density.
A Hypertherm 45 amp nozzle running at 45 amps matches an 85 amp nozzle running at 85 amps. You must pick the right nozzle size and amperage for your job. You get better cuts and less dross with the correct nozzle. Hypertherm Replacement Parts have many nozzle choices for your plasma cutter and material thickness.
You need the right shield for your Powermax plasma cutter. Shields protect your torch from sparks and hot metal. The table below shows common shield part numbers and the models they fit. This helps you pick the correct part for your machine.
Shield Part Number | Compatible Models |
|---|---|
220797 | Powermax 600 |
220842 | Powermax 600 |
420117 | Powermax LT |
420118 | Powermax LT |
120573 | PAC123T |
120574 | PAC123M |
220777 | Duramax Lock 15° |
220842 | Duramax Lock 75° |
Tip: Always check your torch model before you order. Using the correct shield keeps your cuts clean and your torch safe.
MAX series plasma cutters use different shields. Each model needs a specific shield part number. Here are some common MAX series shield numbers:
MAX40: 020427
MAX100: 020428
MAX200: 020429
You should match the shield to your MAX model. This gives you better protection and longer torch life.
HPR series machines work on tough jobs. They need strong shields to handle high heat and sparks. Here are the main HPR series shield numbers:
HPR130: 220817
HPR260: 220817
HPR400XD: 220817
These shields help you cut thick steel and keep your torch working well.
Shields do more than just protect. They help your plasma cutter work better. Some shields, like SmartSYNC consumables, combine several parts into one easy-to-replace cartridge. This makes changing parts faster and easier.
Component Type | Description | Model Compatibility |
|---|---|---|
Shield | Protects components from sparks and molten metal | Powermax 65/85 |
SmartSYNC Consumables | Combines multiple components into one cartridge | All compatible models |
Note: Always use certified Hypertherm Replacement Parts. This ensures your shield fits right and your plasma cutter works at its best.
You need to match your plasma cutter model to the correct part number. This step helps you avoid mistakes and keeps your machine working well. Follow these steps to find the right part:
Find your plasma cutter model name or number. You can check the label on your machine or look in the user manual.
Look up the part number chart for your model. Most manuals or guides list the correct numbers for electrodes, nozzles, and shields.
Check the amperage and cutting application. Some jobs need special parts, like FineCut or gouging consumables.
Compare the part number on your old part with the chart. Make sure they match before you order.
If you use SmartSYNC cartridges, check the cartridge size and type. These cartridges have different dimensions from traditional parts.
Tip: Always double-check the part number before you buy. This step saves time and money.
Worn parts can cause poor cuts and damage your plasma cutter. You should check your consumables often. Here are signs that you need to replace a part:
The electrode has pits, cracks, or a rough tip.
The nozzle hole looks uneven or larger than normal.
The shield has burn marks or is warped.
You see more sparks or dross on your cuts.
The torch makes strange sounds or the arc is unstable.
If you notice any of these problems, replace the part right away. Using fresh Hypertherm Replacement Parts helps you get clean cuts and keeps your machine safe.
You can find important information on the markings of each consumable. These markings help you order the right part and avoid confusion. Here is what you should look for:
Part numbers are stamped or printed on most electrodes, nozzles, and shields.
SmartSYNC cartridges have unique shapes and sizes. You can spot them by their design and markings.
Mechanized cartridges can fit hand torches. This feature gives you more options when choosing parts.
Hypertherm tests each cartridge for quality and reliability. The part number always matches a well-made product.
Note: Always read the markings before you order new parts. This habit helps you pick the right item every time.
You can use these steps and tips to keep your plasma cutter running smoothly. When you know how to match models, spot worn parts, and read markings, you make better choices for your cutting jobs.
Always check part numbers before you order. Look in your plasma cutter’s manual or on your old part’s label. Make sure the part number matches your machine and the job you need to do. If you use the wrong part, your plasma cutter might not work right. You could waste money on parts you cannot use. Compare the numbers on your old consumables with the guide. This easy step helps you avoid mistakes.
Tip: Write your part numbers in a notebook or take a photo with your phone. This makes ordering again much easier.
Many people make mistakes when ordering Hypertherm Replacement Parts. You can stop these problems by following a few simple steps. The table below shows common mistakes and how to avoid them:
Common Mistakes | Preventive Measures |
|---|---|
Using incorrect consumables | Check your manual for the right part for your material, thickness, and amperage. |
Improper torch assembly | Make sure all parts fit tight and line up for good contact and gas flow. |
Neglecting maintenance | Inspect your system often and keep gas and coolant at the right levels. |
Not checking gas and coolant | Keep gas pressure steady and use clean plasma gas to protect your parts. |
If you follow these steps, you will get better cuts and your plasma cutter will last longer.
Always buy from trusted sources. Good suppliers offer high-quality materials and follow strict rules. They only sell real parts. Each part comes with proof it is authentic. You can find every part you need for all models in one place. Trusted dealers have a good reputation and make sure you get the right part every time.
High material quality for important parts like electrodes
Tight manufacturing tolerances for reliable performance
Good supplier reputation for trust and support
Certified authenticity with every part
Full range of consumables for all Hypertherm models
When you buy from authorized dealers, you protect your machine and get the best results from your Hypertherm Replacement Parts.
You get better plasma cutting when you use the right Hypertherm Replacement Parts for electrodes, nozzles, and shields. Certified and matching consumables help you save money and work faster:
Factor | Description |
|---|---|
Longer Consumable Life | Hypertherm consumables use special metals that handle heat well, so they last longer than regular parts. |
Reduced Downtime | Their smart cooling and perfect fit help stop torch problems, so you can cut more and fix less. |
Improved Cutting Performance | The steady plasma arc and smooth gas flow give you cleaner cuts, so you do not have to fix your work as much and you finish faster. |
If you use non-certified parts, your plasma cutter might not work as well and your warranty might not count. Save this guide so you can find it fast. If you need more help, look in your manual or ask an authorized dealer.
You check your plasma cutter’s manual or look at the old part’s markings. You match your model name to the part number listed in this guide. This helps you order the right consumable.
Certified parts give you better performance and longer life. You protect your machine and keep your warranty valid. You avoid problems like poor cuts and torch damage.
You replace parts when you see wear, pits, or burn marks. You check your consumables after every job. Fresh parts help you get clean cuts and keep your torch safe.
You should not mix parts from different models. Each model uses specific consumables. Mixing parts can cause poor performance and damage your plasma cutter.
You buy genuine parts from authorized dealers or trusted suppliers. You check for certifications and proof of authenticity. This ensures you get high-quality consumables for your plasma cutter.
